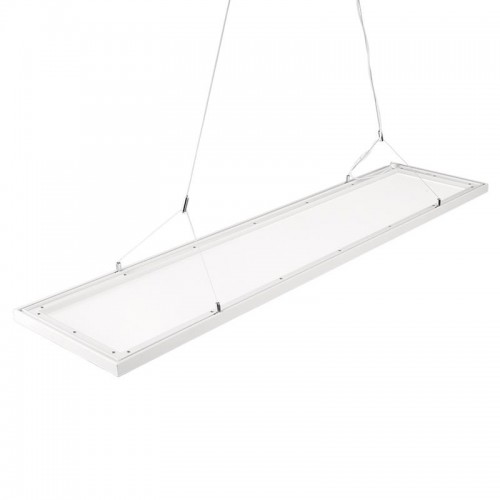

LED - 40% Up, 60% Down Suspended LED Panel
·
A range of high energy-efficiency edge-lit LED
flat panels for office and commercial lighting applications
·

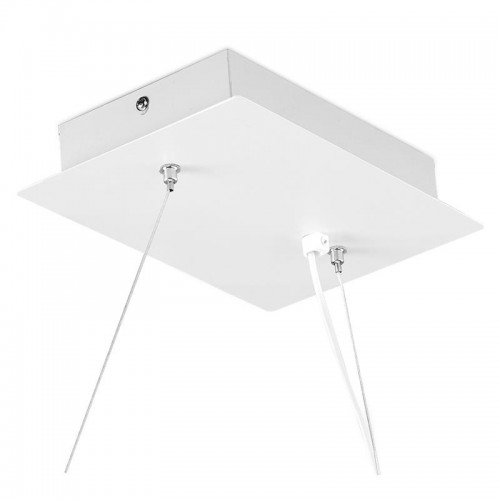

Suspension kit supplied as standard with the
panel
·
PMMA light guide and PS diffuser, for even light
60% functional light and 40% uplighting to create overall feeling of space and
light
·
White profile frame – depth just 1.18”
·
Adjustable length of suspension allowing a drop
of around 47" as standard and positioning of suspension wire along the
length of the panel allows for minor adjustments
·
CRI>80
·
High power factor - 0.90
·
ALL-LED'S dimmable panels provide a simple 0-10V
solution that is compatible with stand alone 0-10V dimmers as well as larger
lighting control systems and allows for installation with daylight or occupancy
sensors
·
Compatible with Lutron 0-10V Dimmers
·
Operating temperature -4°F to 104°F
·
Suitable for damp locations
·
Available color temperatures 3500K, 4000K, 5000K
·
DLC (DesignLights Consortium®) certified
·
(L70) at 50,000 hour lifetime
· 5 Year warranty
| Performance | |
| CCT (Color Temperature) | 3500K |
| Lumen | 3780 Lumens |
| Watts | 36w |
| Lifetime (Hours) | 50,000 |
| CRI (Color Rendering Index) | 80 |
| Dimming | 1-10v |
| Lm/W (Efficiency / Efficacy) | 105 lm/w |
| Weight | 7.37 lbs |
| Specification | |
| Dimensions | 11.59 x 46.96 x 0.9" (LxWxH) |
| Suspension | Yes |
| Accreditations | |
| DLC | DLC Premium |
| UL/cUL | cULus |
| Light Facts | Yes |
Suspended Linear 1'x4' Direct & Indirect 36w 3500K - AR-LPUD1436/35
- Brand: ALL LED
- Product Code: AR-LPUD1436/35
