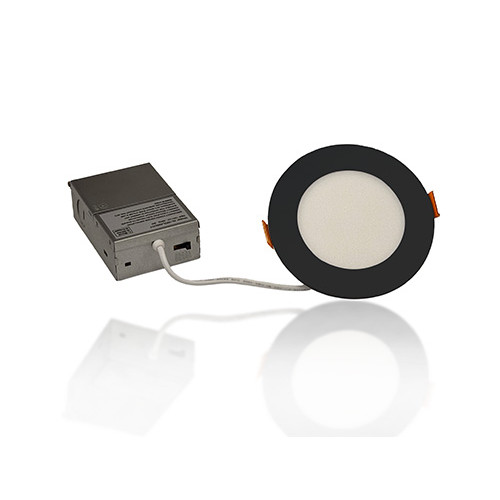

WAFER DOWNLIGHT | Emergency 9-Watt & 5-CCT Select Slimline Design 120v AC J-Box Driver Black Finish
The Wafer range combines a modern, ultra-low-profile design is ideal for shallow ceiling spaces with versatile features for a wide range of applications. Each fixture features a high-quality 120V driver with smooth TRIAC dimming, 5-CCT Select (2700/3000/3500/4000/5000K), the wide-beam provides even illumination a plug-&-play driver connection and integrated junction box for easy installation. Available in 4-inch and 6-inch sizes, white or black finishes, round and square designs, and emergency configurations.
PRODUCT FEATURES
• Watt: 9w (Triac Dimmable)

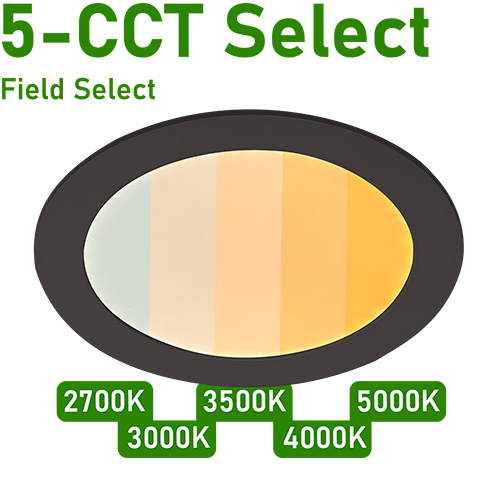

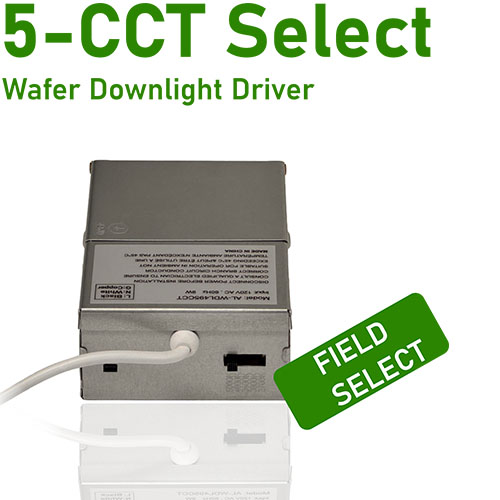

• 5-CCT Select: 2700K / 3000K / 3500K / 4000K / 5000K
• CRI 90
• Wet Location Suitable
• Triac Dimmable
• Compatible with a Wide Range of Dimmers

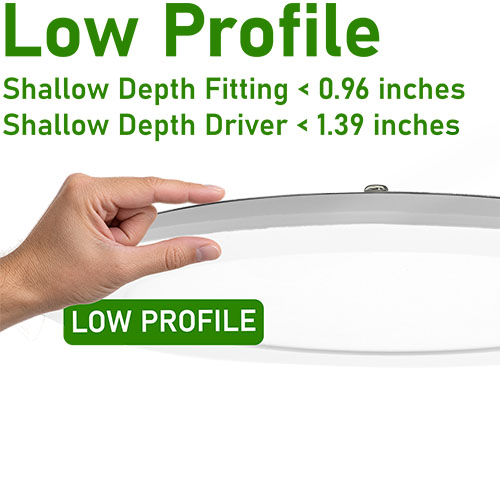

• Low Profile, Fixture < 1.00” and Driver <1.40”

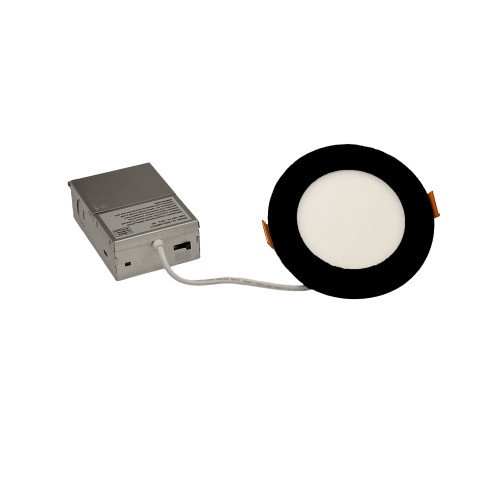

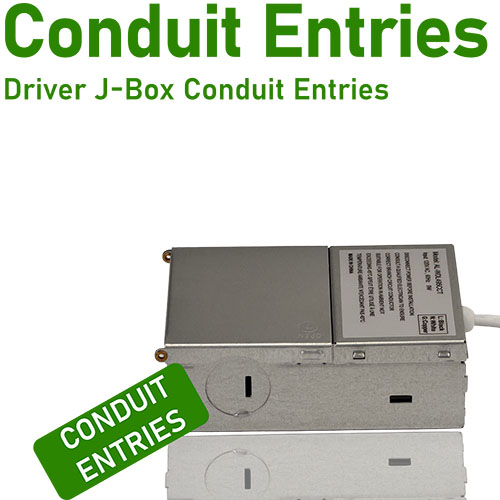

• Driver with Hinged J-Box & Quick-Connector
• Plug-&-Play Driver-to-Fitting Quick Connector
• Wide Beam Angle 120°

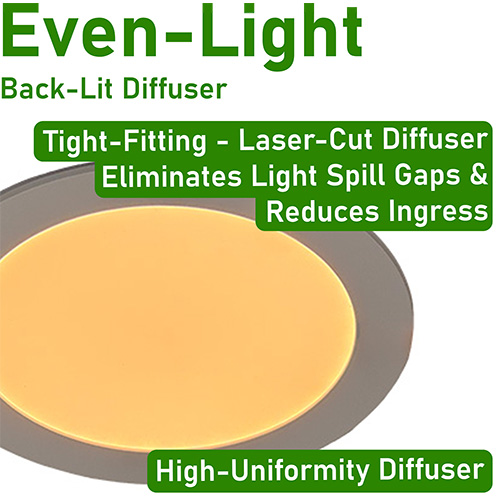

• High-Transmission Optics >90% efficiency
• Flicker Free
• High Power Factor - 0.90
• 120v
• Operating Temperature -4°F to 113°F
• Polycarbonate Lens & Die-cast ADC12 Aluminium Body & Steel Driver Casing
• Powder-Coat White Finish or Black Finish
• (L70) at 50,000 hours lifetime, 5 year warranty.

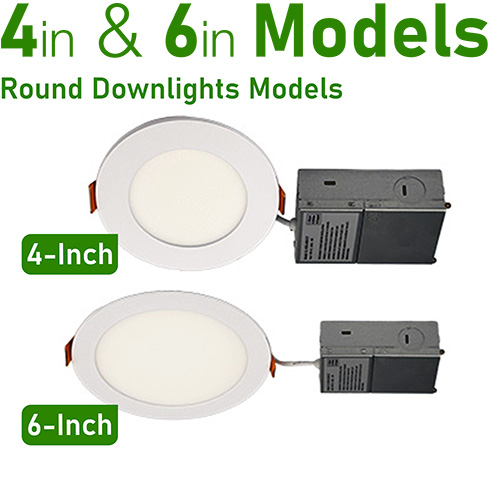

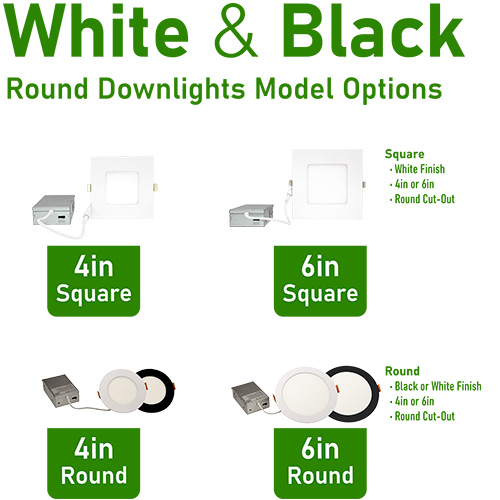

• Range Includes 4in & 6in Models in Round & Square (Round Ceiling Cut-Out)

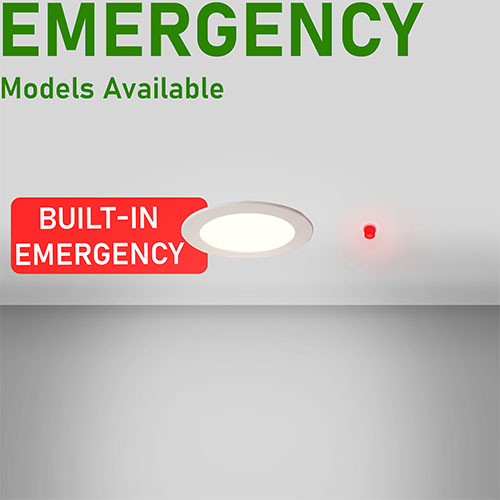

• Emergency Model
APPLICATIONS
Suitable for a wide range of indoor lighting applications including; Commercial, Education, Municipal, Retail, Leisure, Hospitality, Conference Centers, Residential and other indoor lighting applications.
DIMMING COMPATIBILITY
• LUTRON ® TG600PR-WH
• LEVITON ® 6672
• Please contact sales for other controls options.4
| RANGE | |
|
PRODUCT CODE |
TYPE |
|---|---|
| AL-WDL495CCT/WH | White Standard |
| AL-WDL495CCT/BK | Black Standard |
| AL-WDL495CCT/WH/EM | White Emergency |
| AL-WDL495CCT/BK/EM | Black Emergency |
| EMERGENCY | ||||
| PRODUCT CODE | TYPE | EMERGENCY | TEMP | NOTE |
|---|---|---|---|---|
|
AL-WDL495CCT/WH/EM White Finish |
Built-In Emergency with External Indicator |
90min | 41°F - 122°F | Contact sales for more information |
|
AL-WDL495CCT/WH/EM Black Finish |
Built-In Emergency with External Indicator |
90min | 41°F - 122°F | Contact sales for more information |
<
| Performance | |
| Dimming | Triac Dimmable |
| Dimming Range | 10-100% |
| Input Voltage | 120V AC 60Hz (Triac Dimmable) |
| Frequency | 60Hz |
| Power Factor | 0.9 |
| Beam Angle | 120° |
| Lumen | 720lm |
| Lm/W (Efficiency / Efficacy) | 80lm/w |
| CCT (Color Temp.) | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI (Color Rendering Index) | CRI 80 |
| Location Information | Wet Location Suitable |
| Wet Location Suitable | Wet Location |
| Fitting Type | Wafer Downlight |
| Operating Temperature | -4°F - 113°F |
| Warranty | 5 Year |
| Lifetime (Hours) | 50,000 Hours |
| Weight | 0.25lbs (+1.75lbs EM) |
| Specification | |
| Product Range | Wafer Downlight |
| Applications | Suitable for a wide range of indoor lighting applications including; Commercial, Education, Municipal, Retail, Leisure, Hospitality, Conference Centers, Residential and other indoor lighting applications. |
| Finish | Powder-coat Black |
| Construction | Die-Cast ADC12 Aluminium Fixture Body & Polycarbonate Lens |
| Dimensions | (ØxHxHd) 4.70" x 0.96" x 1.38" |
| Accreditations | |
| FCC | FCC |
| ETL/cETL | ETL |
| Quality | USA Quality Assured |
| Options | |
| Emergency | 7w 90min 560lm |
AL-WDL495CCT/BK/EM - Emergency Wafer Downlight - 5-CCT Select Flicker Free 120v AC Triac Dimmable White Finish
- Brand: ALL LED
- Product Code: AL-WDL495CCT/BK/EM
