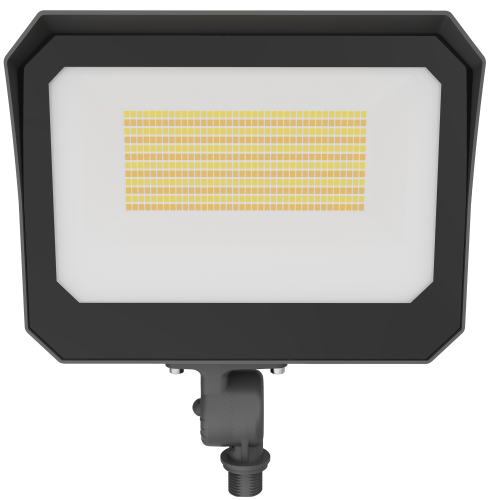

Flood Light | 3-Watt & 3-CCT Built-InPhotSelect Sensor Socket Ready (35w/60/80w/100w & 3500K/4000K/5000K) 120-277V AC 0-10v Powder-coat Bronze Finish
Flood is a durable and efficient range of LED floods available in a range of mounting options and watt-select offerings with Dusk-To-Dawn Photocell (Switch bypassable) and CCT-Select switches located under a durable conduit-style entry for easy field select options.
PRODUCT FEATURES
• Watt Select: 35w / 60w / 80w
• Color selectable 3000K, 4000K, 5000K
• Dusk-To-Dawn Photcell Sensor (Switch Bypass)
• Field Watt & CCT & Photocell Select
• Knuckle, Yoke, Slip-fitter and Trunnion Mounting Options
• 135lm/w
• Up to 10,800lm
• 10kVa Surge Protection
• Glass Lens
• CRI>70
• IP65 - Wet Location Suitable
• High power factor - 0.95
• 0-10V Dimmable with stand alone 0-10V dimmers as well as larger lighting control systems and allows for installation with external-mounted sensors. Compatible with Lutron 0-10V dimmers.
• EPA Suitable
• Operating temperature -40°F to 113°F
• Suitable for Wet locations
• (L70) at 50,000 hours lifetime
• 5 year warranty.
APPLICATIONS
Suitable for a wide range of outdoor lighting applications including; Commercial, Education, Municipal, Retail, Leisure, Hospitality and Conference Centers, Garage, Walkways, Entrances, loading areas and other canopy applications.
| RANGE | |
|
PRODUCT CODE |
TYPE |
|---|---|
| AL-FL356080CCT-Y | Yoke |
| AL-FL356080CCT-S | Slip-Fitter |
| AL-FL356080CCT-K | Knuck |
| AL-FL356080CCT-S | Slip-Fitter |
| Performance | |
| Dimming | 0-10V |
| Dimming Range | 10-100% |
| Input Voltage | 120 - 277V AC 50/60Hz |
| Frequency | 50/60Hz |
| Power Factor | 0.9 |
| Beam Angle | x |
| Lumen | lm |
| Lm/W (Efficiency / Efficacy) | 135lm/w |
| CCT (Color Temp.) | 3000K / 4000K / 5000K |
| CRI (Color Rendering Index) | CRI 70 |
| Location Information | Wet Location Suitable |
| Wet Location Suitable | Wet Location |
| Photocell | Integrated Photocell (Dusk-to-Dawn) Bypass Switchable |
| Fitting Type | Floodlight |
| Operating Temperature | -40°F - 113°F |
| Warranty | 5 Year |
| Lifetime (Hours) | 50,000 Hours |
| Weight | 29.03lbs |
| Specification | |
| Product Range | Floodlight |
| Applications | Suitable for a wide range of outdoor lighting applications including; Commercial, Education, Municipal, Retail, Leisure, Hospitality and Conference Centers, Garage, Walkways, Entrances, loading areas and other Outdoor applications. |
| Finish | Powder-coat Bronze |
| Construction | Die-Cast Aluminium Fixture & Borosilicate Glass Lens |
| Dimensions | LxHxP - 9.49" x 7.25" x 2.84" (plus mounting) |
| SDCM | <6 |
| Accreditations | |
| FCC | FCC |
| UL/cUL | UL |
| ETL/cETL | cETLus |
| Quality | USA Quality Assured |
| Options | |
| Sensor | Integrated Photocell (Dusk-to-Dawn) Bypass Switchable |
| Accessories | Mounting Options available for Range include: Knuckle/Yoke/Slipfitter/Trunnion |
AL-FL356080CCT-* - Flood Light 35/60/80w - CCT + Watt Select Built-in Photocell (Bypassable) 120-277v AC 0-10v Bronze Finish
- Brand: ALL LED
- Product Code: AL-FL356080CCT-*
