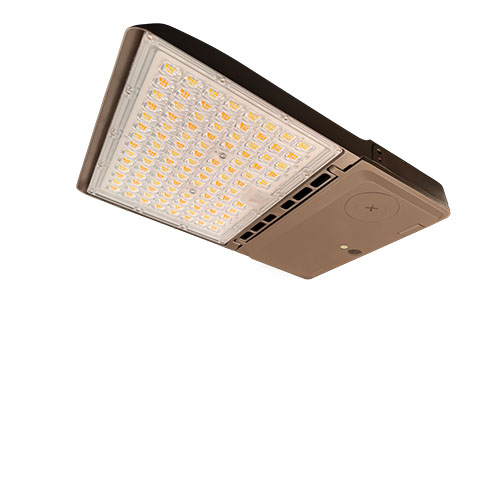

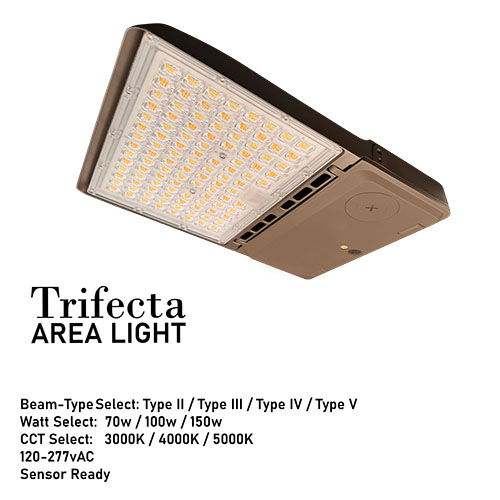

Trifecta Area Light | Beam-Type & Watt & CCT Select (70w/100w/150w & 3000K/4000K/5000K) 120-277V AC 0-10v Plug&Play Sensor-Socket-Ready Matte Bronze Powdercoat Finish
The Trifecta range of Area Lights features the latest in cutting edge technology to provide the perfect lighting solution. Trifecta Technology include Beam Angle (Beam-Type) Select, Watt-Select and CCT Select with a high lumen per watt efficacy, 0-10v dimmable and a wide range of accessories including Plug&Play Sensors and a wide range of adaptors, with installer friendly design including easy access driver and inbuilt level.
PRODUCT FEATURES

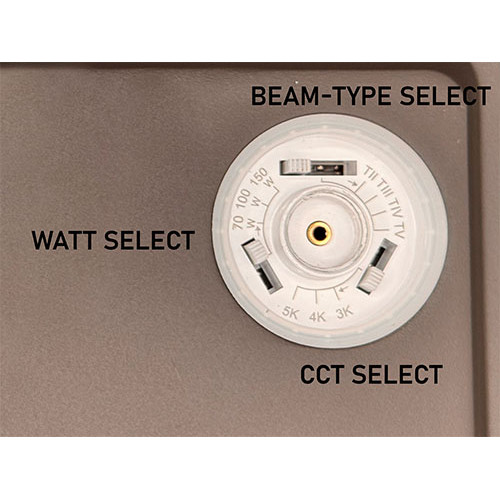

• Beam-Type Select: Type II / Type III / Type IV / Type V
• Watt Select: 70w / 100w / 150w
• CCT Select: 3000K / 4000K / 5000K
• 0-10V Dimmable
• 120-277v AC Input volt
• Plug&Play Optional Sensors
• IK08
• Wet Location
• IP65
• Die-Cast Aluminium in a bronze finish with polyarbonate lens
• Shorting Cap included

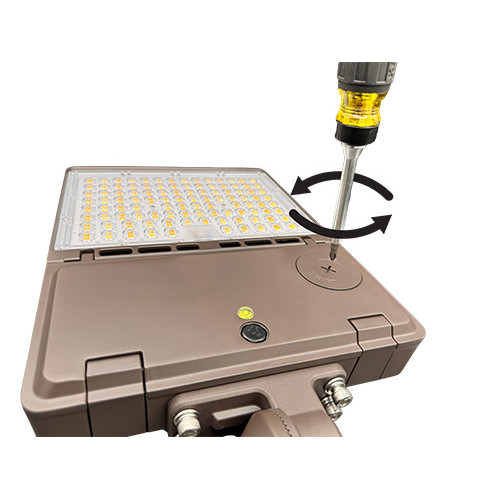

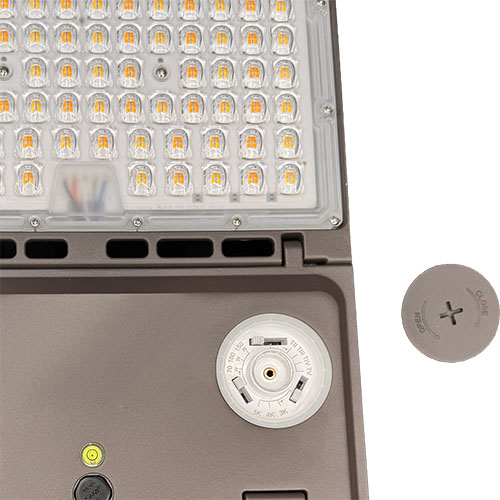

• Designed for easy maintenance
• 10kVa Surge Protection
• Accessories:
Slip Fitter
Pole Mount (Round & Square Pole)
Trunion
Glare Shield
PIR Sensor
Microwave Sensor
Programming Remote for Microwave Sensor
Tennon
Bullhorn Adaptors
• 5 Year Warranty
| Range | |
| Sku | Desc. |
|---|---|
| AL-AL202430LSCCT | Area Light |
| AL-BLP22-20/30/40WS-CCT/EM | 2'x 2' CRI 90 EM |

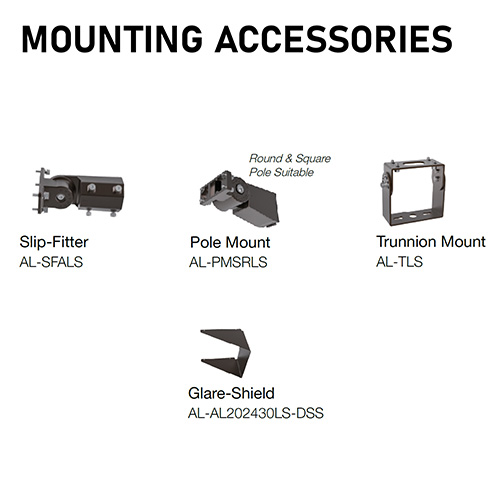

MOUNTING ACCESSORIES |
||
| Sku | Desc. | |
|---|---|---|
| Slip-Fitter | AL-SFALS | |
| AL-PMSRLS | Pole Mount (suitable for Round or Square Poles) | |
| AL-TLS | Trunnion Mount | |
| AL-AL202430LS-DSS | Glare-Shield | |
TENON MOUNTING ACCESSORIES |
||
| Sku | Desc. | |
|---|---|---|
| AL-3TEN-ADAPT-RD | 3" Round Tenon Adaptor | |
| AL-4TEN-ADAPT-RD | 4" Round Tenon Adaptor | |
| AL-SQ-4TEN-ADAPT | 4" Square Tenon Adaptor | |
BULLHORN MOUNTING ACCESSORIES |
||
| Sku | Desc. | |
|---|---|---|
| AL-BULLHORN-2ARM-U | 2-Arm “U” Bullhorn | |
| AL-BULLHORN-3ARM-T | 3-Arm “T” Bullhorn | |
| AL-BULLHORN-3ARM-Y | 3-Arm 120° “Y” Bullhorn | |
| AL-BULLHORN-4ARM-U | 4-Arm 90° Quad Bullhorn | |
| AL-BULLHORN-STH-2ARM | 2-Arm “U” Bullhorn | |
| AL-BULLHORN-SQ-L-2 | 180° Double Bullhorn | |
| AL-BULLHORN-SQ-L-3 | 180° Tripple Bullhorn | |
| AL-BULLHORN-SQ-L-4 | 180° Quad Bullhorn | |

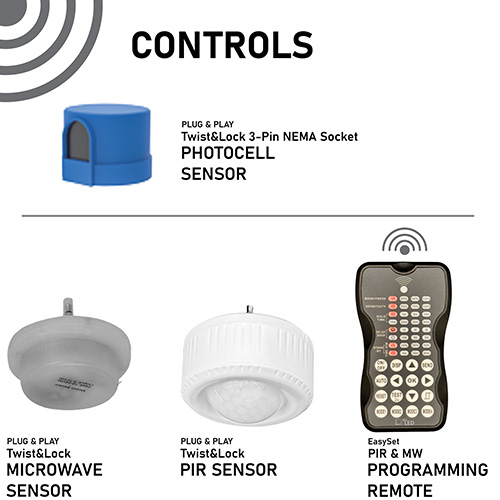

| CONTROL ACCESSORIES | ||
| Sku | Desc. | |
|---|---|---|
| AL-PC | Photocell - 120-277v 3-Pin NEMA Socket | |
| AL-PIRAL | PIR Sensor | |
| AL-MSRE | Microwave Sensor | |
| AL-MSRC | Programming Remote for Microwave & PIR Sensors | |
| Performance | |
| CCT (Color Temperature) | CCT Select: 3000K / 4000K / 5000K |
| Lumen | 10,150lm / 14,500lm / 21,750lm |
| Watts | Watt Select: 200w/ 240w/ 300w |
| BUG (Backlight/Uplight/Glare) | B4 / U3 / G3 |
| IK Rating | IK08 |
| Warranty | 5 Years |
| Lifetime (Hours) | 50,000 (L70) |
| Frequency | 50/60Hz |
| Location Information | Wet Location |
| Supply (Voltage) | 120 - 277V AC 50/60Hz |
| CRI (Color Rendering Index) | CRI>80 |
| Ingress Protection (IP Rating) | IP65 |
| Beam Angle | Beam Select: TYPE II / TYPE III / TYPE IV / TYPE V |
| Dimming | 0-10v |
| Dimming Range | 10% to 100% |
| Power Factor | 0.9 |
| Lm/W (Efficiency / Efficacy) | up to 145lm/w |
| Weight | - |
| Surge | 10 kVa |
| Specification | |
| Construction | Die-Cast Aluminium Fixture & Polycarbonate Lens |

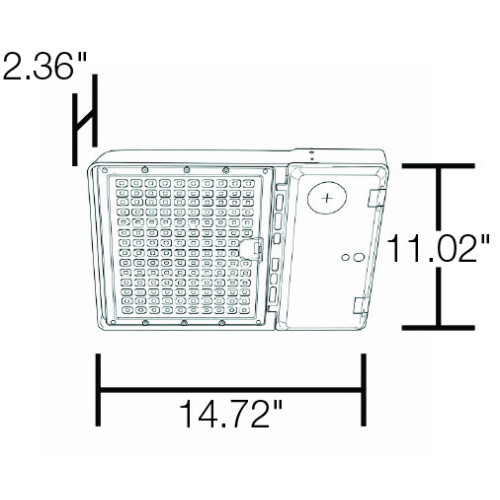

| Dimensions | LxWxH: 16.38” x 12.40” x 2.36” |
| LED Type | SMD 2835 |

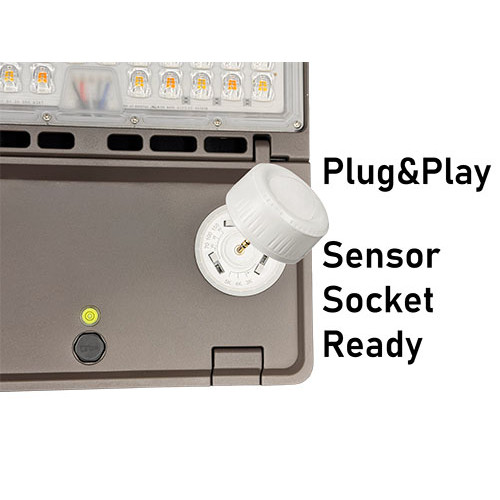

| Sensor | Plug&Play Sensor-Socket Ready. PIR Sensor, Microwave Sensor & PhotoCell (Dusk-to-Dawn) Sensor Accessories sold separately. |
| Operating Temperature | -40°F - 133°F |
| Finish | Bronze Powdercoat |
| Fitting Type | Area Light |
| Accreditations | |
| DLC | DLC Premium |
| FCC | FCC |
| UL/cUL | UL |
| Options | |
| Mounting Options (Sold Separately) | Slip Fitter / Trunnion / Pole Mount |
AL-AL701050LSCCT - TRIFECTA - Beam-Type & Watt & CCT Select Area Light | 100-277v 70W/100W/150w 3000/4000/5000K 0-10v Sensor-Ready
- Brand: ALL LED
- Product Code: AL-AL701050LSCCT
