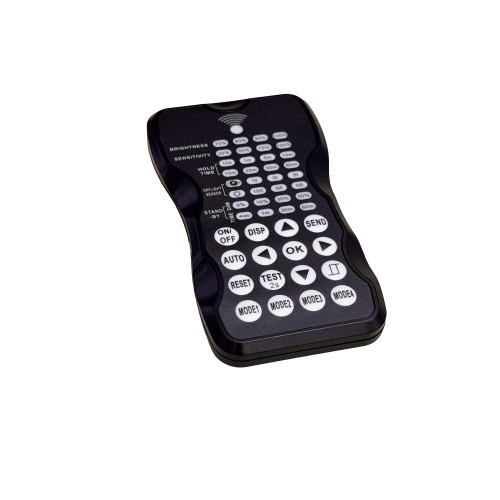

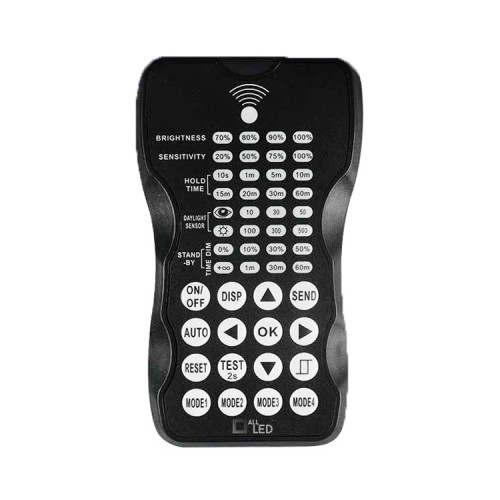

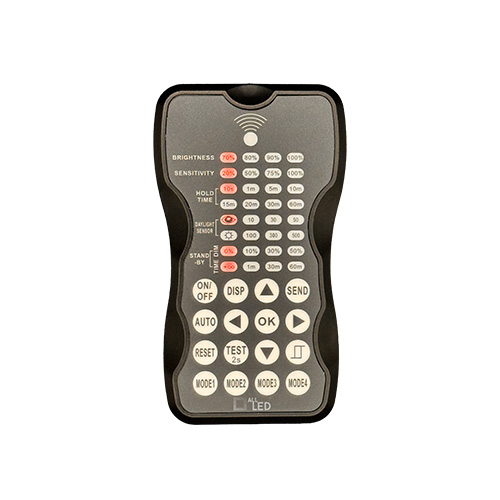

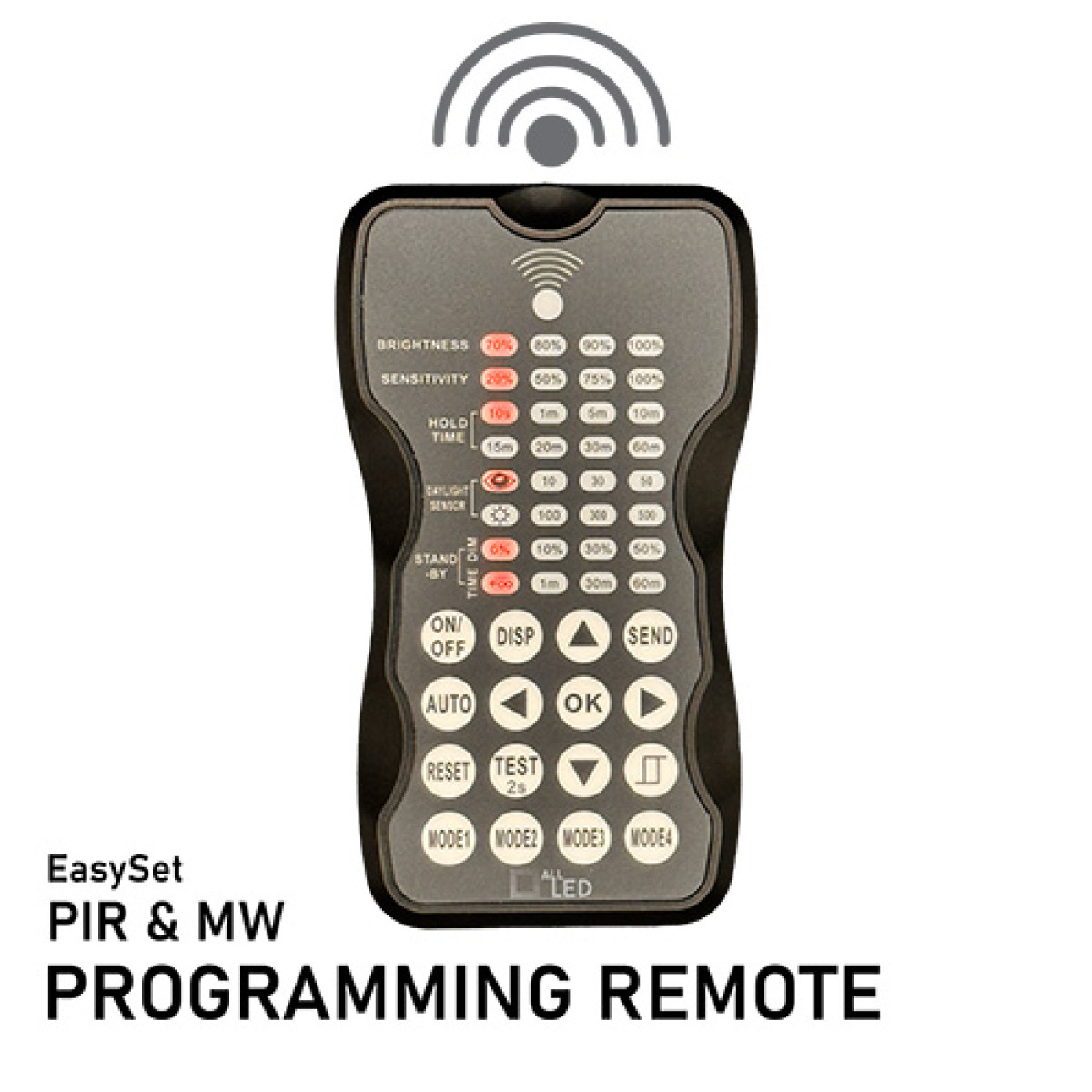

AL-MSRC - Programming Remote for Plug&Play Sensors (AL-MSRE Microwave Sensor & AL-PIRAL PIR Sensor)

AL-MSRC Programming Remote for Twist&Lock Plug&Play Field Install Microwave & PIR Sensors

To customize the settings for compatible ranges of microwave and PIR sensors this remote control is simple to use, has a 50ft range to program fixtures mounted up to 45ft above the ground all from ground level. This changes the factory default programming of the sensors with an easy to use press-button interface. This remote can send individual settings to the fixture one at a time or pre-set the remote away from site and then program multiple settings to a sensor with a single button press.

PRODUCT FEATURES

• Only one remote is required to program multiple fixtures
• Light Up Remote Display
• Update
• Requires 2xAAA batteries (not suppled)
• Program fixtures mounting in place (up to 45ft high) from below
• Easy update fixture settings after installation
• Maximum Sensor Mounting Height: 40ft

Remote Settings

• Brightness: 70% / 80% / 90% / 100%
• Sensitivity: 20% / 50% / 75% / 100%
• Hold Time: 10s / 1min / 5min / 10min / 15min / 20min / 30min / 60min
• Daylight Setting: Off / Daylight / 500 / 300 / 100 / 50 / 30 / 30
• Standby Light Output: 0% / 10% / 30% / 50%
• Standby Time: Continuous(infinite) / 1min / 30min / 60min
• Reset
• On/Off
• Test
• Auto
• Disp (display current remote settings on display)
• Send
• Mode 1 / Mode 2 / Mode 3 / Mode 4

Scene Modes Defaults
