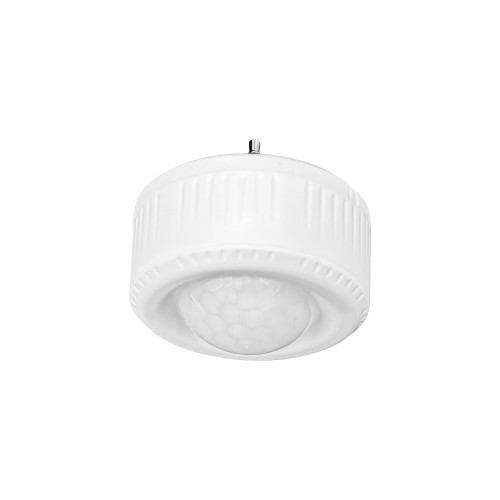

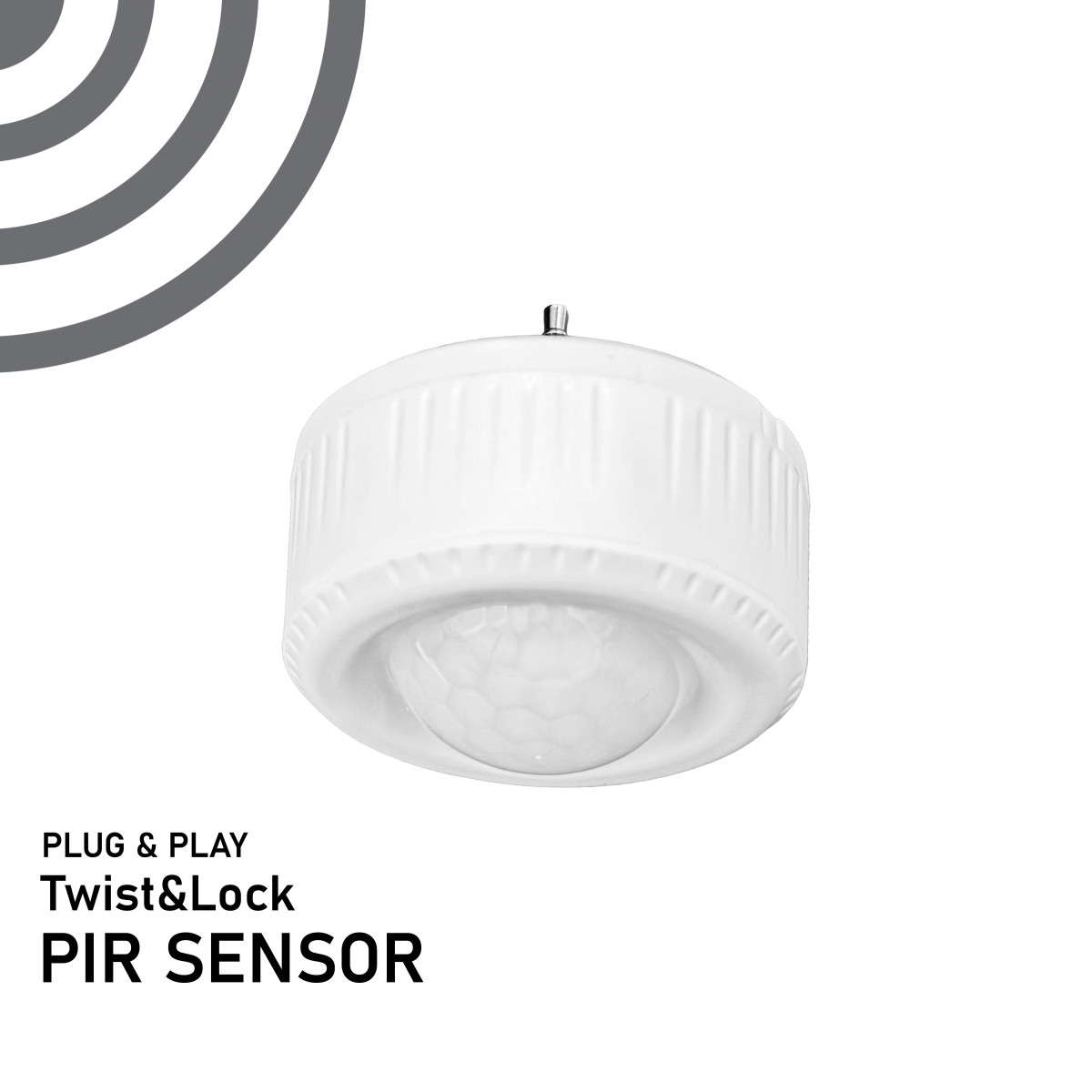

AL-MSRE Twist&Lock Plug&Play Field Install PIR Sensor (Passive Infra-Red Motion Detection)

This PIR (Passive InfraRed) Plug&Play Twist&Lock sensor is ideal for fixture control. This sensor designed for field install and easy to install. This offers out the box control with factory default settings and the settings are programmable by remote (sold separately) for maximum control flexibility.

PRODUCT FEATURES

• Adjustable Sensitivity, brightness, hold times, dimming levels, dimming hold times, daylight settings.
• For use with Round High Bay, Linear High Bay, Canopy light, Area Light, and more.
• Twist and lock (to install, simply remove any fixture covers or caps, then insert the contact "pin" and rotate clockwise until snug)
• Programmable with AL-RC Remote Control
• Maximum Sensor Mounting Height: 40ft
• Maximum Sensor Detection Width: 26ft
• 12-24V DC (>50mA)
• 0-10v Dimming (Dim to off capable, using programming remote)
• 0-10V Maximum 25mA Current Sink
• PIR: Passive Infra-Red
• Temperature Range: -40°F ~ +140°F (-20°C ~ 60°C)
• Remote Program Range up to 50FT ceiling height
• IP65

Factory Sensor Default Settings
• 100% Sensitivity
• 100% Brightness
• Hold time 5 minutes
• Dimming level 30%
• Hold time to Dim (Standby): 30 minutes (Switch off after last detection)
• Daylight Sensor Disabled
Sensor Warm Up - First sensor use procedure, switch on and wait 15 seconds for the sensor to activate (the light will switch on for 15 seconds) then turn off, after this the sensor will perform as programmed.
Programming by remote, the fixture will flash/pulse (dim down/turn off then dim to full brightness/turn on) to confirm receipt of command.
Daylight Sensor Disabled

Bi-Level (also known as 3 stage dimming and corridor function
This is where the fixture can be programmed to dim after a set amount of time and then dim further or switch off after a second time preset:
• Maximum Brightness when Sensor is Activated (Triggered) e.g. 100%
• The fixture will dim to a "Hold Level" e.g. 50% (30 minutes after the last detection
• The Fixture will dim after a set amount of time if not activated to the "Base Dim Level"
Example. Highbay installed in a warehouse will dim to 50% after 50 mins from the last detection, then Dim to Off (0% light output) after 30 mins (35 mins from last trigger).
Note: All highbays are programmable with the same remote and may be programmed indivdually with the same or different settings.
