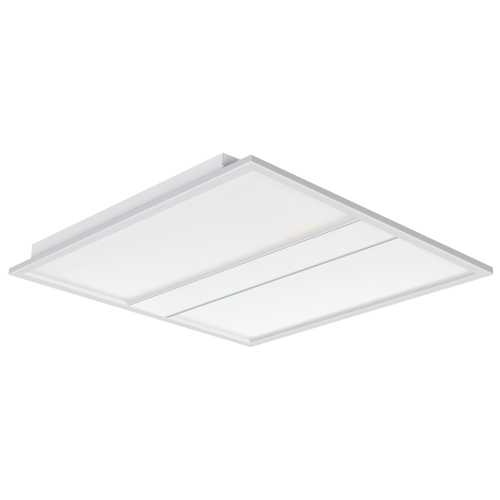

TRX | 2x2 PREMIUM SPECIFICATION 3-DIMENSIONAL ARCHITECTURAL TROFFER | Watt & CCT Select (25w/30w/35w & 3500K/4000K/5000K) 120-277V AC 0-10v Matte White Finish
The TRX range of modern architectural design LED troffer lights have a sleek design, shallow recessed depth optimized for modern ceiling plenum requirements, back-lit technology, and perfectly engineered for a high-quality finish. This range includes 2x2, 2x4 and 1x4 fittings and models with built-in 6w emergency back-up, PIR sensors and smart controls.
PRODUCT FEATURES
• 3-Watt Select: 25w / 30w / 35w
• 3-CCT Select: 3500K / 4000K / 5000K
• Low Profile Design <1.95” Depth
• 0-10v Dimmable (Dim to 10%)
• 120-277v AC Input volt
• Compatible with most leading Grid Ceilings including: 9/16" Flat, 9/16" Slot, 9/16" Interlude, 15/16" Flat
• 125lm/w
• DLC Premium
• CRI >80
• Suitable for damp locations and dry locations
• IC Rated
• High-Uniformity Diffuser Back-Lit Design
• Laser-Cut Tight Fitting Diffuser to Eliminate Light-Spill and Reduce Ingress
• Ideal replacement solution for legacy technologies
• Applications: Offices, Educations, Retail, Healthcare
• TRX Range Includes: 2x2, 2x4, 1x4 models
• 6w 90min Emergency Backup Model Available, add /EM to part number
• L70 50,000 hours lifetime
• 5 year warranty
APPLICATIONS
Designed for a wide range of indoor grid-ceiling recessed lighting applications including; Commercial, Education, Municipal, Retail, Leisure, Hospitality and Conference Centers.
| RANGE | |
|
PRODUCT CODE |
TYPE |
|---|---|
| AL-TRX-DM-22/3WS/3CCT | Standard |
| AL-TRX-DM-22/3WS/3CCT | Emergency |
| EMERGENCY | ||||
| PRODUCT CODE | TYPE | EMERGENCY | TEMP | NOTE |
|---|---|---|---|---|
|
AL-TRX-DM-22/3WS/3CCTEM |
Built-In Emergency & Indicator (DC Wiring) |
6W 90min 800lm | 32°F - 122°F | Made to Order |
|
Special Order (Contact Sales Office) |
Built-In Emergency & Remote Mount Indicator (DC Wiring) |
6W 90min 800lm | 32°F - 122°F | Remote Mount Indicator (Field Install) |
|
Special Order (Contact Sales Office) |
External Emergency & Field Mount Indicator (AC Wiring) |
16W 90min 2100lm |
32°F - 122°F |
Remote Mount Pack & Indicator (Field Install) |
| 25W 90min 3400lm | ||||
| DIMMING & SENSOR | |||
| PRODUCT CODE | BRAND | MODEL | TYPE |
|---|---|---|---|
|
Dimming Only Special Order (Contact Sales Office) |
Lutron Athena | A-WN-D01-RF-WH | Athena wireless node (RF only) |
|
Dimming Only Special Order (Contact Sales Office) |
Lutron Athena | A-WN-D01-OCC-WH | Athena wireless node with Sensor |
|
Dimming Only Special Order (Contact Sales Office) |
Keilton | IFS108E | Fixture Integrated PIR & Daylight Harvesting Sensor |
| Performance | |
| Dimming | 0-10v Dimming |
| Dimming Range | 10% to 100% |
| Input Voltage | 120 - 277V AC 50/60Hz |
| Frequency | 50/60hz |
| Power Factor | 0.9 |
| THD (Total Harmonic Distortion) | FCC |
| Beam Angle | 112° (Av. to 50%) |
| Lumen | 2750lm / 3300lm / 3850lm |
| Lm/W (Efficiency / Efficacy) | up to 110lm/w |
| Watts | 25w / 30w / 35w |
| CCT (Color Temp.) | 3500K / 4000K / 5000K |
| CRI (Color Rendering Index) | >80 |
| Location Information | Damp Location |
| IC | DLC Listed |
| Fitting Type | Back-Lit Troffer |
| Operating Temperature | -4°F - 104°F |
| Warranty | 5 years |
| Lifetime (Hours) | 50,000 hours |
| Specification | |
| Applications | Designed for a wide range of indoor grid-ceiling recessed lighting applications including; Commercial, Education, Municipal, Retail, Leisure, Hospitality and Conference Centers. |
| Finish | Sensor Models Available (Lutron Athena & Keilton available) |
| Construction | Aluminium Fixture Body & Polycarbonate Lens |
| Diode Type | roHs |
| Dimensions | 23.74” x 23.74” x 0.74” |
| Accreditations | |
| DLC | DLC Listed |
| FCC | FCC |
| UL/cUL | UL |
| ROHS | roHs |
| Options | |
| Sensor | Sensor Models Available (Lutron Athena & Keilton available) |
| Accessories | UL |
| Emergency | Field-Install Accessory Sold Separately, Built-In Emergency Model Available |
AL-TRX-DM-22/3WS/3CCT - TRX 2x2 - Premium Specification 3-D Architectural Troffer | Watt & CCT | 100-277v 25/30/35w 3500/4000/5000K 0-10v
- Brand: ALL LED
- Product Code: AL-TRX-DM-22/3WS/3CCT
Tags: ALL LED TRX 2x2 Premium Specification 3-D Architectural Troffer Watt & CCT 25/30/35w 3500/4000/5000K 0-10v 100-277v, Sensor Options, Emergency Options
