Features
- Suitable for use on exterior warehousing, industrial, and commercial buildings
- Significant energy savings and maintenance
- 0-10V dimming with most 0-10V dimmers
- IK08 glass lens with 95° to 100° beam
- Instant on/off, no re-strike delay
- 120lm/W
- AC 100-277 Volts
- Suitable for wet locations IP65
- Power selectable- 45W/60W/75W
- CCT selectable - 3000K, 4000K or 5000K
- Operating Temperature -40ºF to 122ºF
- 50,000 hours lifetime
- 5 Year Warranty
Compliance & Approvals
| Name | Size | Action |
|---|---|---|
| AL-FC4567CCT Full Cutoff WP Watt and CCT Selec CUTSHEET.pdf | 359.65KB | Download |
| AL-FC45675CCT-Full Cutoff Wall Pack [45w 3000K].IES | 23.41KB | Download |
| AL-FC45675CCT-Full Cutoff Wall Pack [45w 4000K].IES | 23.4KB | Download |
| AL-FC45675CCT-Full Cutoff Wall Pack [45w 5000K].IES | 23.38KB | Download |
| AL-FC45675CCT-Full Cutoff Wall Pack [60w 3000K].IES | 23.38KB | Download |
| AL-FC45675CCT-Full Cutoff Wall Pack [60w 4000K].IES | 23.38KB | Download |
| AL-FC45675CCT-Full Cutoff Wall Pack [60w 5000K].IES | 23.33KB | Download |
| AL-FC45675CCT-Full Cutoff Wall Pack [75w 3000K].IES | 23.4KB | Download |
| AL-FC45675CCT-Full Cutoff Wall Pack [75w 4000K].IES | 23.31KB | Download |
| AL-FC45675CCT-Full Cutoff Wall Pack [75w 5000K].IES | 23.34KB | Download |
| Performance | |
| CCT (Color Temperature) | CCT Select: 3000K / 4000K / 5000K |
| Lumen | 5400lm / 7200lm / 9000lm |
| Watts | Watt Select: 45w / 60w / 75w |
| IK Rating | IK08 |
| Warranty | 5 Years |
| Lifetime (Hours) | (L70) at 50,000 hours lifetime |
| Frequency | 50/60hz |
| Supply (Voltage) | AC100-277 volts |
| Wet Location Suitable | Wet Location Suitable (IP65) |
| CRI (Color Rendering Index) | >80 |
| Ingress Protection (IP Rating) | IP65 |
| Beam Angle | 90º x 100º |
| Dimming | 0-10V dimming with most 0-10V dimmers |
| Power Factor | 0.90 |
| Lm/W (Efficiency / Efficacy) | 120lm/w |
| Weight | 4.18 lbs |
| Specification | |
| Construction | Die-Cast Body, polycarbonate Lens |
| Emergency | 1260lm (8watt 90mins) add /EM to part number: AL-FC45675CCT/EM |
| LED Type | SMD |
| Sensor | Optional photocell (Supplied Separately): AL-FCPC |
| Operating Temperature | - 40℉ to 122℉ |
| Finish | Bronze |
| Accreditations | |
| DLC | DLC |
| FCC | FCC |
| ETL/cETL | ETL |

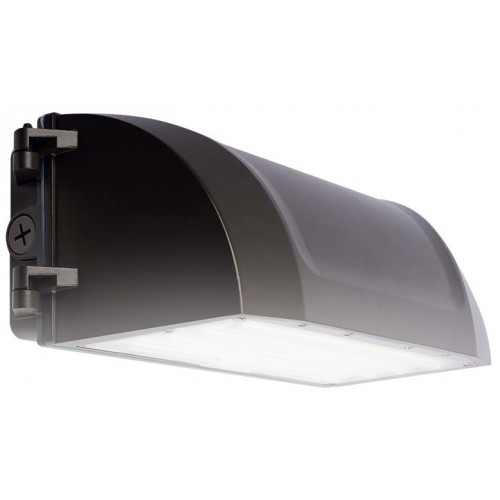

AL-FC45675CCT - Full Cutoff CCT Color Selectable & Power Selectable
- Brand: ALL LED
- Product Code: AL-FC45675CCT
