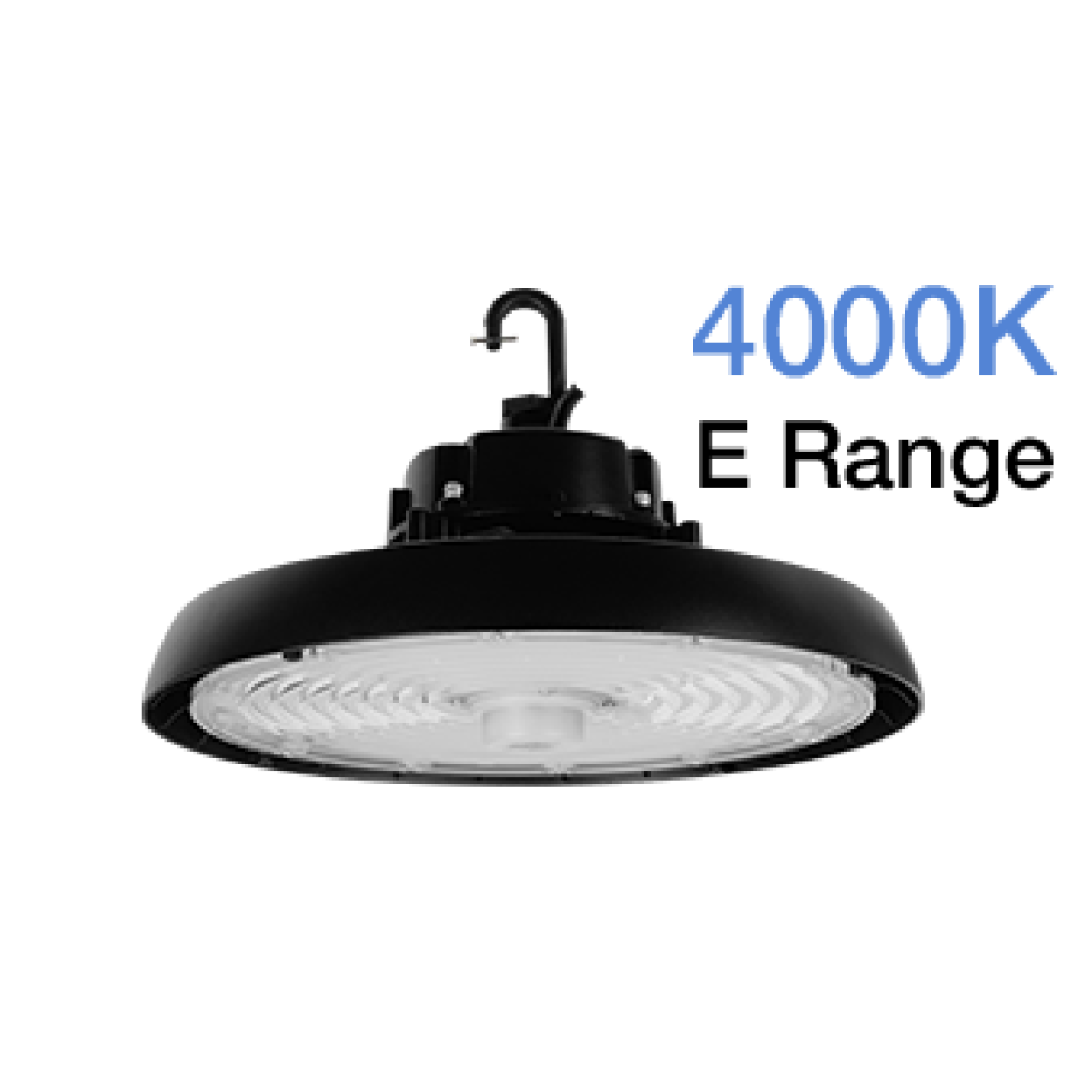

The Pro-Bay LED Highbay by ALL LED has been designed using the latest LED technology offering a range of 140lm/W. Featuring an optional Twist & Lock Sensor, which has been designed for installation into the center of the highbay without the need for any tools! Installation of the easily programmable Microwave Sensor into the heart of the Ulti-Bay maintains the horizontal balance of the super lightweight highbay for optimum aesthetics.
Features
- Suitable for use in warehousing, manufacturing, conference centers, industrial applications, canopies and high end retail applications
- Significant energy savings and maintenance free
- 0-10v dimming with most 0-10v dimmers
- Polycarbonate lens with 90° beam as standard
- Instant on/off, no re-strike delay
- Easy Install Twist and Lock Microwave Sensor available (order separately AL-MSCF)
- Remote Control for Sensor available (order separately AL-RC)
- Suitable for wet locations IP65
- Supplied with 4.8' of power cord
- Available in 100W, 150W or 200W options
- Reflectors sold separately - 70° aluminum black reflector or 90° Acrylic reflector
- Operating temperature -31°F to +131°F
- Color Temperature 4000K
- (L70) at 50,000 hours lifetime
AL-HB100E/40 - 100W ≤14,000lm
AL-HB150E/40 - 150W ≤21,000lm
AL-HB200E/40 - 200W ≤28,000lm
AL-HB300E/40 - 300W ≤42,000lm
Compliance & Approvals
| Performance | |
| CCT (Color Temperature) | 4000K |
| Lumen | ≤14,000 (100w), ≤21,000 (150w), ≤28,000 (200w), 42,000 (300w) Lumens (Select the required Lumens when Ordering) |
| Watts | 100w, 150w, 200w, 300w (Select the required Consumption when Ordering) |
| Warranty | 5 Year Warranty |
| Lifetime (Hours) | 50,000 Hours (L70) |
| Location Information | Wet Location Suitable IP65 |
| CRI (Color Rendering Index) | CRI 80 |
| Beam Angle | 90º |
| Dimming | 0-10v Dimming |
| Power Factor | 0.9 |
| Lm/W (Efficiency / Efficacy) | 140lm/w |
| Specification | |
| Construction | Aluminium Light Frame Construction |
| Dimensions | 100W Height: 7.29" Diameter: 10.22" 150W Height: 7.74" Diameter: 11.37" 200W Height: 7.94" Diameter: 13.10" 300W Height: 9.02" Diameter: 14.88" |
| Applications | Industrial, Retail, Commercial |
| Operating Temperature | -31°F ~ 131°F |
| Accreditations | |
| DLC | DLC Premium Listed |
| FCC | Y |
| UL/cUL | UL LIsted |
AL-HB***E/40 Range - 4000K - 100w/150w/200w/300w Pro-Bay Low Profile LED High Bay
- Brand: ALL LED
- Product Code: AL-HB100E/40, AL-HB150E/40, AL-HB200E/40, AL-HB300E/40
