Model AL-G5615/27, AL-G5615/30, AL-G5615/40, AL-G5615/50

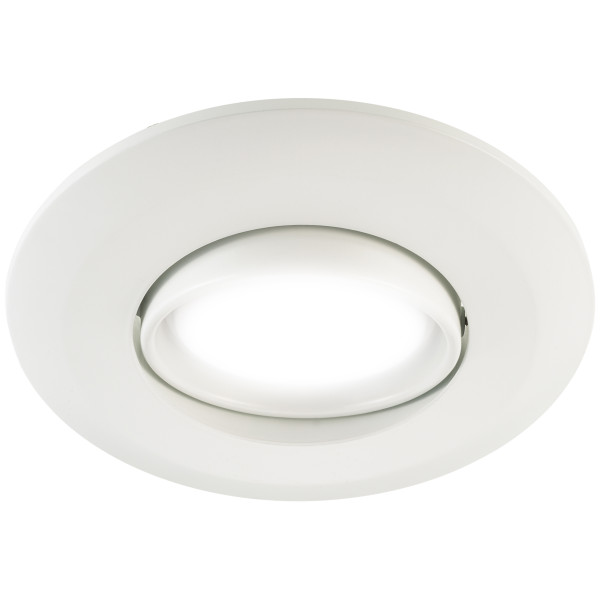

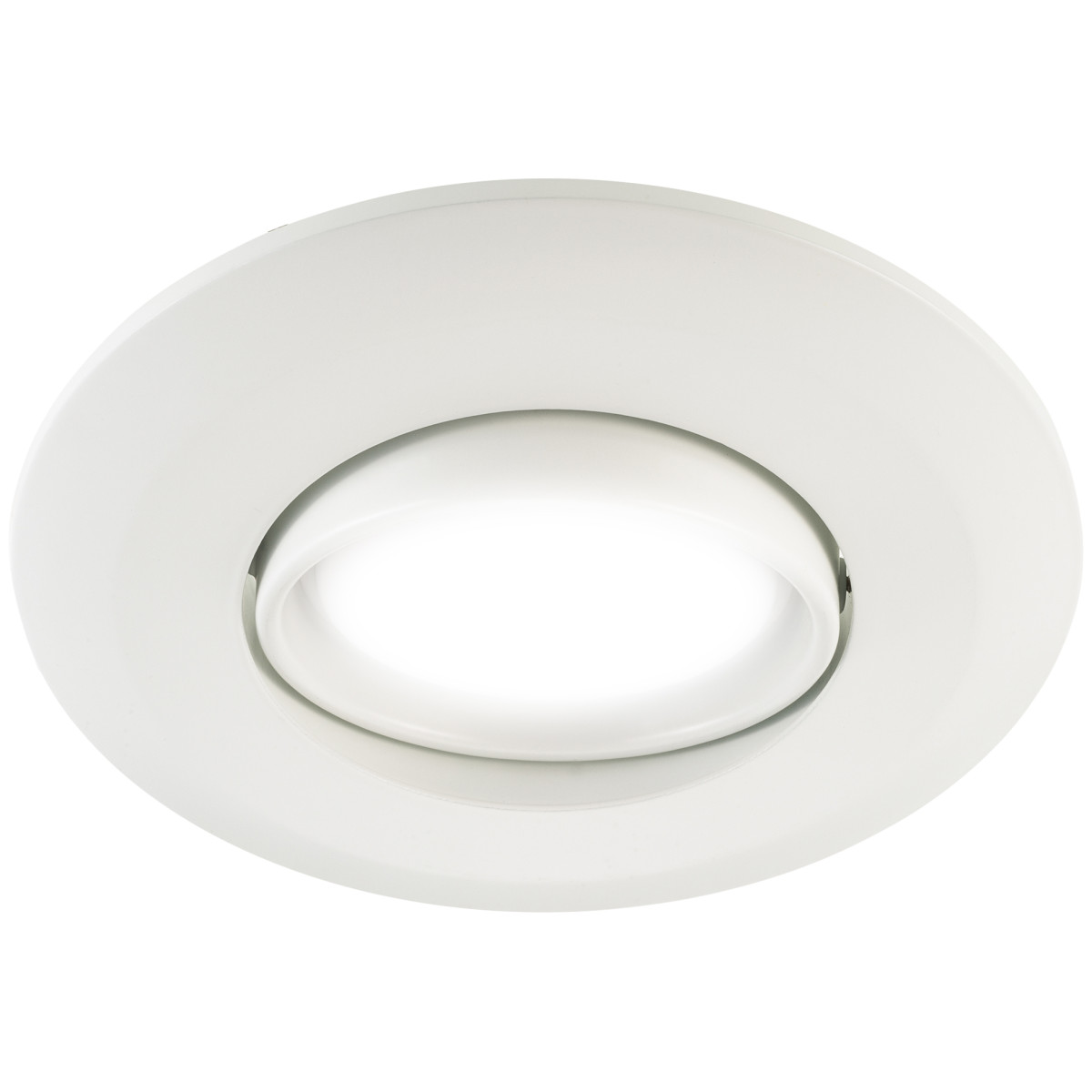

AL-G5615 Range - EasyFit 5-6" 15w LED Retrofit Gimbal Trim
By ALL LED
Designed to service the needs of the residential/commercial
market, the ALL-LED Easyfit retrofit 5-6” gimbal trim is ideal for
replacing existing incandescent, fluorescent and halogen lights with their
superior high powered low wattage LEDs with CRI>90 for true color rendering.
The Easyfit Plus installs easily into most 5-6” recessed
CANs, including IC and NON-IC housings offering great versatility between
different project requirements and comes with gimbal feature. Compatible with most line voltage dimmers.
Features
- Adjustable with gimbal feature allowing 355° rotation
- Dimmable on most leading/trailing edge 120v dimmers
- Lightweight Aluminum Body
- Easy installation - E26 socket & quick connector
- White Bezel
- Universal Clips/Easy install
- IC rated (when used in IC rated CAN)
- High Color Rendering of CRI>90
- (L70) at 50,000 hours lifetime
- Title 24 High Energy compliance for California
- Suitable for damp locations
- Available in 2700K, 3000K, 4000K & 5000K
- 5 year warranty
AL-G5615 - 1000lm
Compliance & Approvals
- Model
- AL-G5615/27, AL-G5615/30, AL-G5615/40, AL-G5615/50
- SKU
- AL-G5615/27, AL-G5615/30, AL-G5615/40, AL-G5615/50
- Brand
- ALL LED
- Dimming
- Line Voltage Dimming
- Input Voltage
- 120v AC
- Power Factor
- 0.90
- Beam Angle
- 90°
- Lumen
- ≤1000 Lumens
- Watts
- 15w
- CCT (Color Temp.)
- 2700K / 3000K / 4000K / 5000K (Select Fixed Color Temperature when Ordering)
- CRI (Color Rendering Index)
- CRI 90
- Wet Location Suitable
- Wet Location Suitable
- Operating Temperature
- -4°F ~ 104°F
- Warranty
- 5 Year Warranty
- Lifetime (Hours)
- 50,000 Hours
- Applications
- Residential & Commercial
- Finish
- White
- Construction
- Aluminium Body
- Dimensions
- 7.71" x 2.99" (Overall Diameter x Recess Depth) [Overall Diameter: 7.71 Inches]
- Energy Star
- ☑
- Title 21 - Ja8
- ☑
- FCC
- ☑
- ETL/cETL
- cETLus
- Quality
- USA Quality Assured
