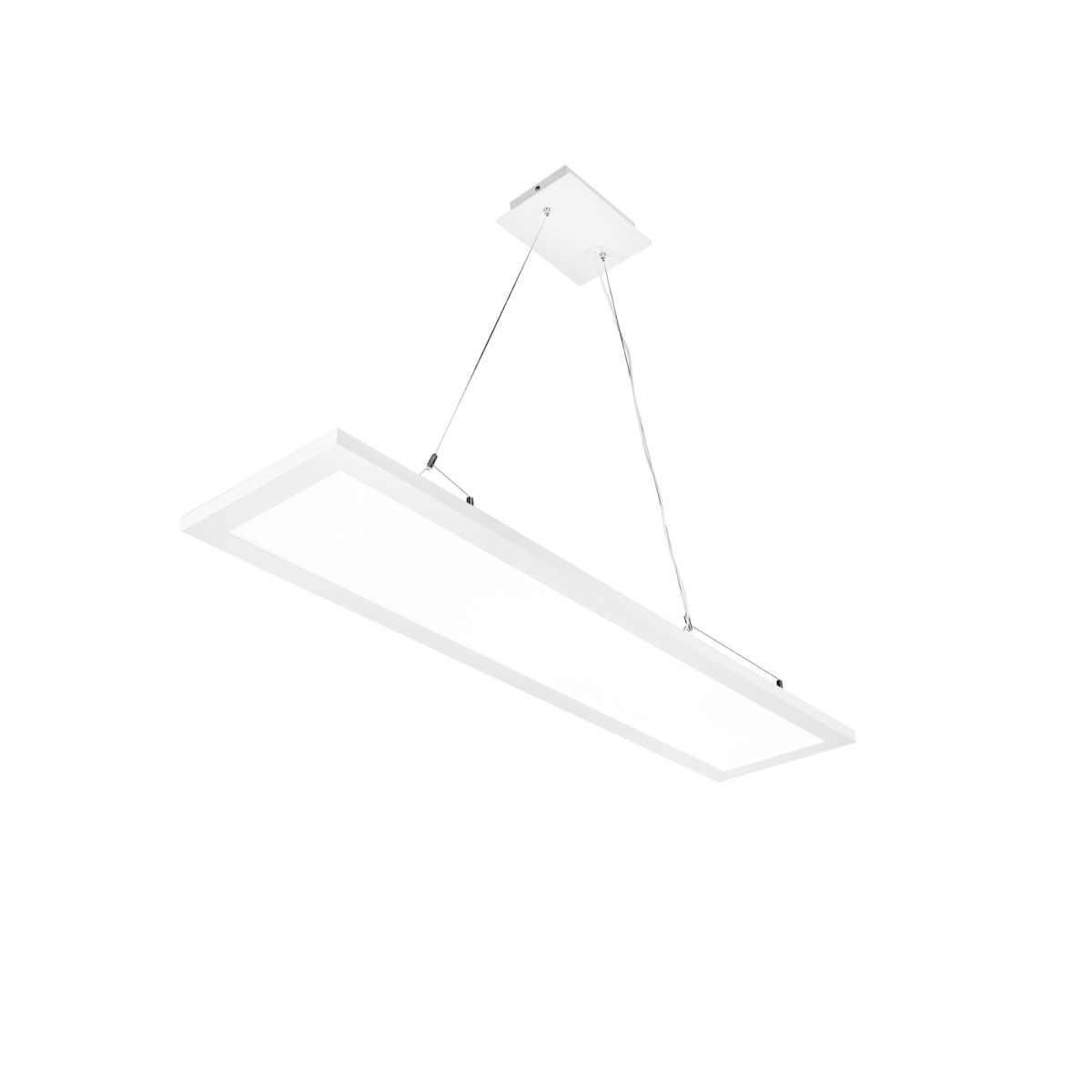

The EDGE 1' x 4' Suspended Up/Down LED Light Panels feature high efficiency, quality and performance. These luminaires are designed with edge-lit technology to produce highly efficient lighting, which provides a 40% Up and 60% Down Light distribution. Fitted with a high transmission diffuser for minimal glare. The luminaires have a clean, modern look and the thin profile makes them unique and an ideal solution for when a pendant mount is required.

Features

• A range of high energy-efficiency edge-lit LED flat panels for office and commercial lighting applications
• Suspension kit supplied as standard with the panel
• PMMA light guide and PS diffuser, for even light 60% functional light and 40% uplighting to create overall feeling of space and light
• White profile frame – depth just 1.18”
• Adjustable length of suspension allowing a drop of around 47" as standard and positioning of suspension wire along the length of the panel allows for minor adjustments
• CRI>80
• High power factor - 0.90
• ALL-LED's dimmable panels provide a simple 0-10V solution that is compatible with stand alone 0-10V dimmers as well as larger lighting control systems and allows for installation with daylight or occupancy sensors
• Compatible with Lutron 0-10V Dimmers
• Operating temperature -4°F to 104°F
• Suitable for damp locations
• Available color temperatures 3500K, 4000K, 5000K
• Premium DLC (DesignLights Consortium®) certified
• (L70) at 50,000 hours lifetime
• 5 Year warranty

AR-LPUD1436 - 3780LM

Compliance & Approvals
