Model AL-ST045/WW, AL-ST045/W

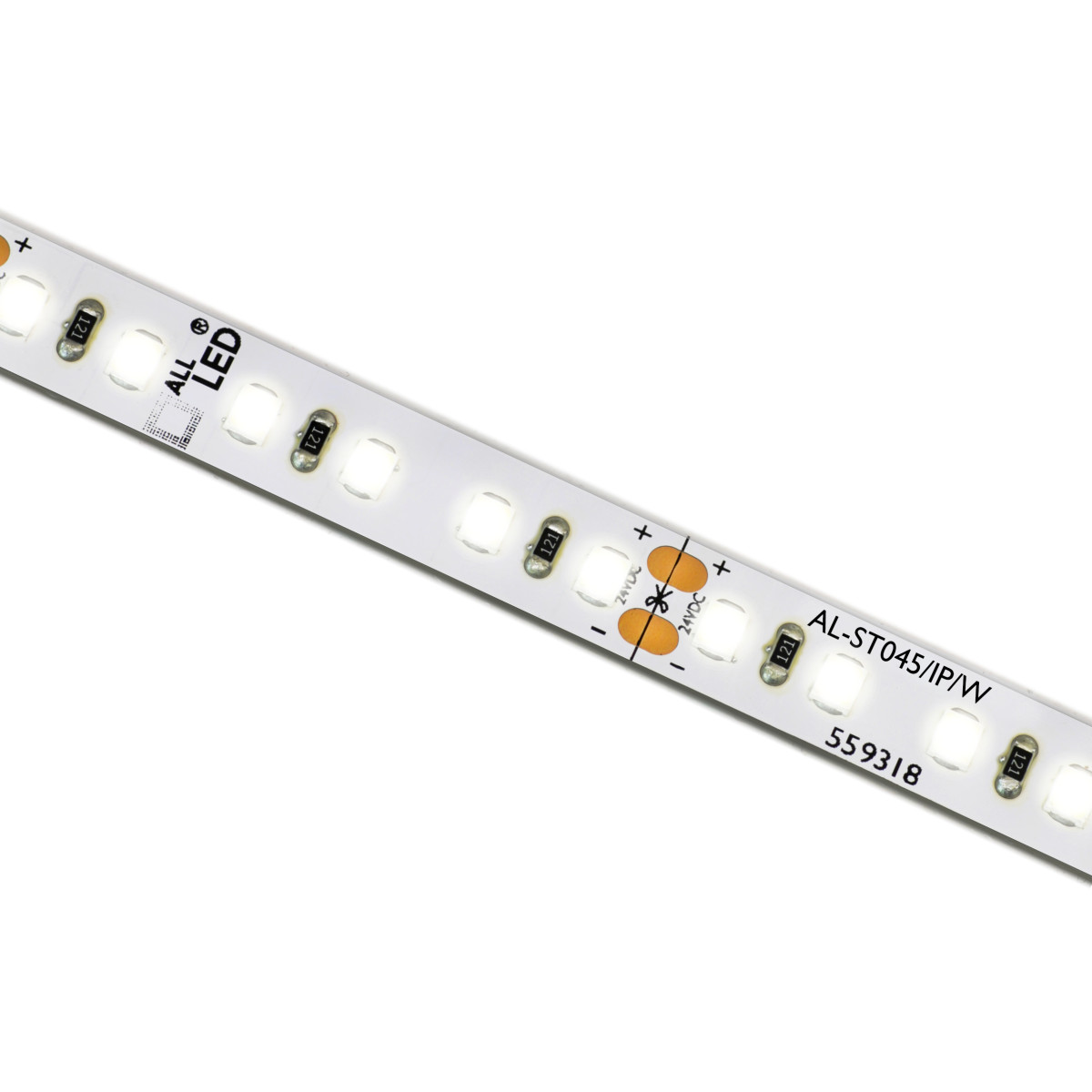

AL-ST045 Range - Elegance Dry Location 4.5w/ft 24v LED Tape
By ALL LED
Elegance 24V Low Voltage Dry Location LED Single Color Flexible Tape is a multi-purpose tape light can be used in various applications including accent, architectural highlighting and is also ideal for residential purposes. Designed with a 3M self adhesive backing for installation to clean dry surfaces. Low power consumption of 4.5W per foot.
Features
- 24V DC Driver is required
- Dimmable with dimmable driver
- Cut points every 1.97"
- 4.5W/ft
- 36 Diodes per ft
- Maximum run length 30' for runs over 30' run must be wired in parallel
- 120° Wide Beam Angle
- Compatible with ALL LED Universal Aluminum Profile Range
- Dry Locations Only, AL-ST045/IP is available for Wet Locations
- Color Options WW-3000K or W-4000K
- 455lm/ft
- 131' reel length
- Comes with 3M backing tape
- CRI>80
- Order to the nearest foot
- 3 Year Warranty
Connector Range
AL-SCC144/LE - Live End 18" Long Lead
AL-SCC144/CUP - Coupler to join 2 pieces strip
AL-SCC144/2CAB - Corner 6" Long Lead
AL-STC10-15/LE - Push in Live End Connector with no lead
AL-STC10-15/CUP - Coupler to join 2 pieces strip
Compliance & Approvals
- Model
- AL-ST045/WW, AL-ST045/W
- SKU
- AL-ST045/WW, AL-ST045/W
- Brand
- ALL LED
- Dimming
- Dimmable with dimmable 24V LED Driver
- Input Voltage
- 24v AC
- Beam Angle
- 120°
- Lumen
- 455lm/ft
- Lm/W (Efficiency / Efficacy)
- 4.5w/ft
- Watts
- 4.5w/ft
- CCT (Color Temp.)
- 3000K/4000K (Select Fixed Color Temperature when Ordering)
- CRI (Color Rendering Index)
- >80
- Location Information
- Dry Locations Suitable
- Operating Temperature
- -4 ~ 104°F
- Warranty
- 3 Year Warranty
- Lifetime (Hours)
- 30,000 hours
- Applications
- Effect, Feature Lighting, General Lighting, Detail Lighting, Niche Lighting and More
- Construction
- High Grade PCB
- Dimensions
- 0.39" x 0.06" (Width x Height)
- FCC
- Y
- UL/cUL
- cULus Certified
- Light Facts
- Y
