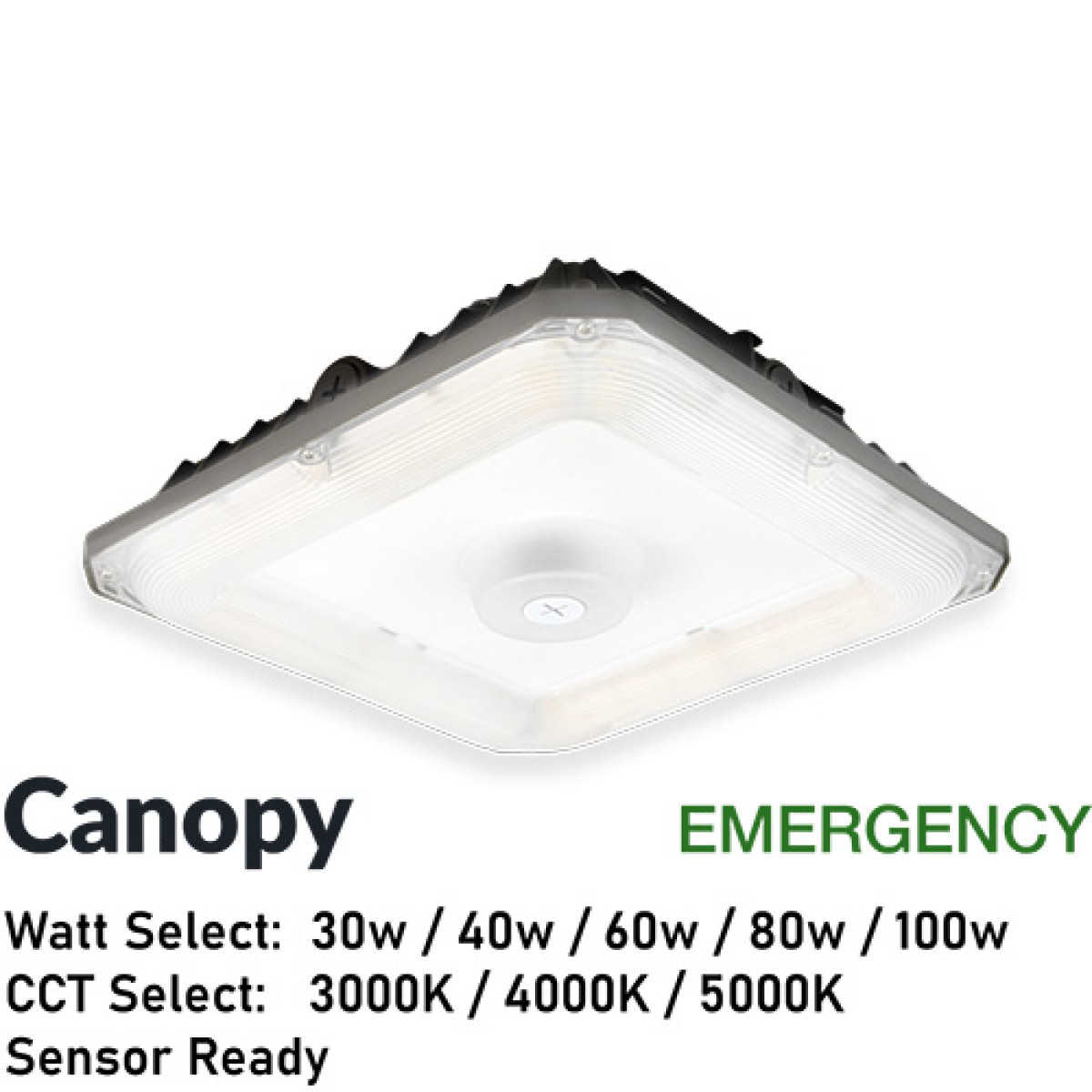

AL-CL30406080100/EM - EMERGENCY Canopy Light - CCT + Watt Select Sensor Socket Ready 120-277v AC 0-10v Bronze Finish
Canopy Light | EMERGENCY 5-Watt & 3-CCT Select Sensor Socket Ready (30w/40w/60/80w/100w & 3500K/4000K/5000K) 120-277V AC 0-10v Powder-coat Bronze Finish
CANOPY LIGHT is a fitting combining high-performance illumination with maximum flexibility for a wide range of Installation requirements. Featuring 5-Watt & 3-CCT Select (output and color temperature), 0-10v dimming and Plug&Play sensor-ready ensure easy field-configuration. The low-profile design, durable construction and wide beam angle makes it ideal for parking garages, covered walkways, entrances, loading areas, service stations and other canopy applications.
PRODUCT FEATURES
• 5-Watt Select: 30w / 40w / 60w / 80w / 100w
• 3-CCT Select: 3500K / 4000K / 5000K
• Sensor Socket Ready - Plug&Play
• Hinged quick-mount backplate & removable fixture for easier installation
• High-Transmission Optics
• Wide beam angle
• IK08 - Impact Resistance
• IP65 - Ingress Protection
• Suitable for Wet Locations
• 0-10v dimmable - Compatible with Lutron 0-10V dimmers
• 120-277v AC
• 4kV Surge Protection (Built-in to Driver)
• High power factor - 0.90
• Operating temperature -40°F to 113°F (41°F - 133°F Emergency)
• Surface or Pole-Pendant mount suitable
• Robust polycarbonate lens & Aluminium Body
• Powder-coat Bronze finish
• (L70) at 50,000 hours lifetime, 5 year warranty
• Emergency Option Available
• Sensor Accessories available, see Accessories
APPLICATIONS
Suitable for a wide range of outdoor lighting applications including; Commercial, Education, Municipal, Retail, Leisure, Hospitality and Conference Centers, Garage, Walkways, Entrances, loading areas and other canopy applications.
| RANGE | |
|
PRODUCT CODE |
TYPE |
|---|---|
| AL-CL3040608010CCT | Standard |
| AL-CL3040608010CCT/EM | Emergency |
| EMERGENCY | ||||
| PRODUCT CODE | TYPE | EMERGENCY | TEMP | NOTE |
|---|---|---|---|---|
| AL-CL3040608010CCT/EM |
Built-In Emergency with Indicator |
90min | 32°F - 122°F | Contact sales for more information |
| DIMMING | ||
| PRODUCT CODE | MODEL | TYPE |
|---|---|---|
|

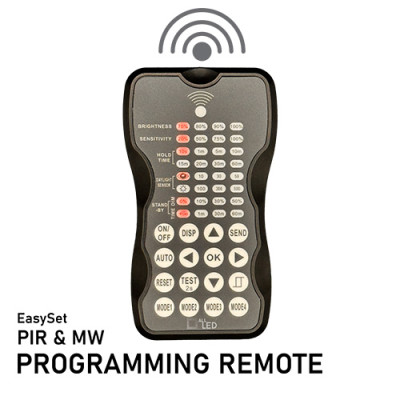

Remote Plug & Play |
AL-MSRC |
Remote to program Microwave Sensor/PIR Sensor (Note: Not suitable for use with Photocell) |
|

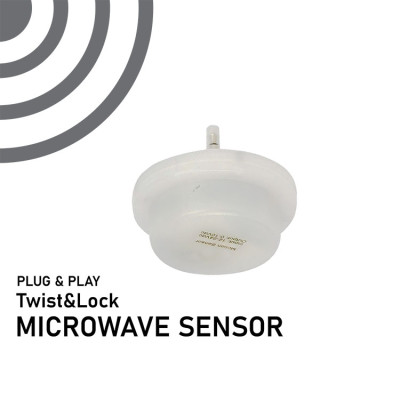

Microwave Sensor Plug & Play |
AL-MSLH |
Plug & Play Microwave Sensor Factory-set or Programmable with AL-MSRC |
|

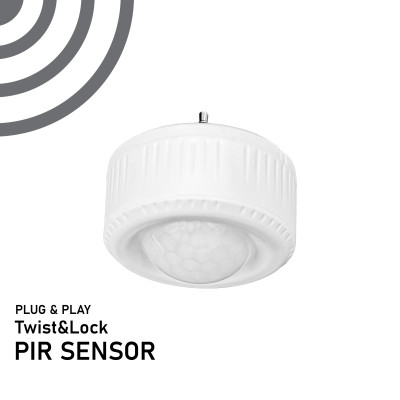

PIR (Passive Infra-Red) Sensor Plug & Play |
AL-PIRAL |
Plug&Play PIR (Passive Infra-Red Sensor) Factory-set or Programmable with AL-MSRC |
|

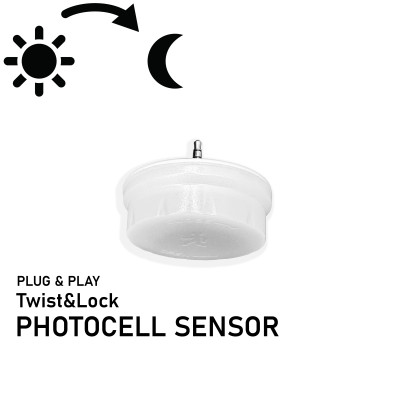

Photocell (Dusk-To-Dawn) Sensor Plug & Play |
AL-PC12VTL |
Plug&Play Photocell Sensor for Dusk-To-Dawn Factory-Set, non-programmable |
- Model
- AL-CL30406080100/EM
- SKU
- AL-CL30406080100/EM
- Brand
- ALL LED
- Dimming
- 0-10V
- Dimming Range
- 10-100%
- Input Voltage
- 120 - 277V AC 50/60Hz
- Frequency
- 50/60Hz
- Surge
- 4kV Surge Protection (Built-in to Driver)
- Power Factor
- 0.9
- Beam Angle
- 150°
- Lumen
- 3750lm/ 5000lm/ 6250lm/ 6875lm/ 7500lm
- Lm/W (Efficiency / Efficacy)
- 135lm/w
- CCT (Color Temp.)
- 3500K / 4000K / 5000K
- CRI (Color Rendering Index)
- CRI 70
- Location Information
- Wet Location Suitable
- Wet Location Suitable
- Wet Location
- Photocell
- Plug&Play Sensor Socket Ready - Sensor Sold Separately
- Fitting Type
- Canopy Light
- Operating Temperature
- -40°F - 133°F
- Warranty
- 5 Year
- Lifetime (Hours)
- 50,000 Hours
- Weight
- 4.52lbs
- Product Range
- Canopy Light
- Applications
- Suitable for a wide range of outdoor lighting applications including; Commercial, Education, Municipal, Retail, Leisure, Hospitality and Conference Centers, Garage, Walkways, Entrances, loading areas and other canopy applications.
- Finish
- Powder-coat Bronze
- Construction
- Die-Cast Aluminium Fixture & Borosilicate Glass Lens
- Dimensions
- LxWxH - 10.06" x 10.06" x 2.73"
- SDCM
- <6
- FCC
- FCC
- UL/cUL
- UL
- ETL/cETL
- cETLus
- Quality
- USA Quality Assured
- Sensor
- Plug&Play Sensor Socket Ready - Photocell/PIR/MW Sensors Sold Separately
- Accessories
- Plug & Play Sensors: Microwave/PIR (Factory set or programmable with remote)/Photocell (Dusk-To-Dawn Factory set non-programmable)
- Emergency
- Built-In Emergency Model
