AL-ST4FT30/40/50/EM - 4' LED Strip Light | EMERGENCY | CCT | Power Selectable - STRIPLIGHT

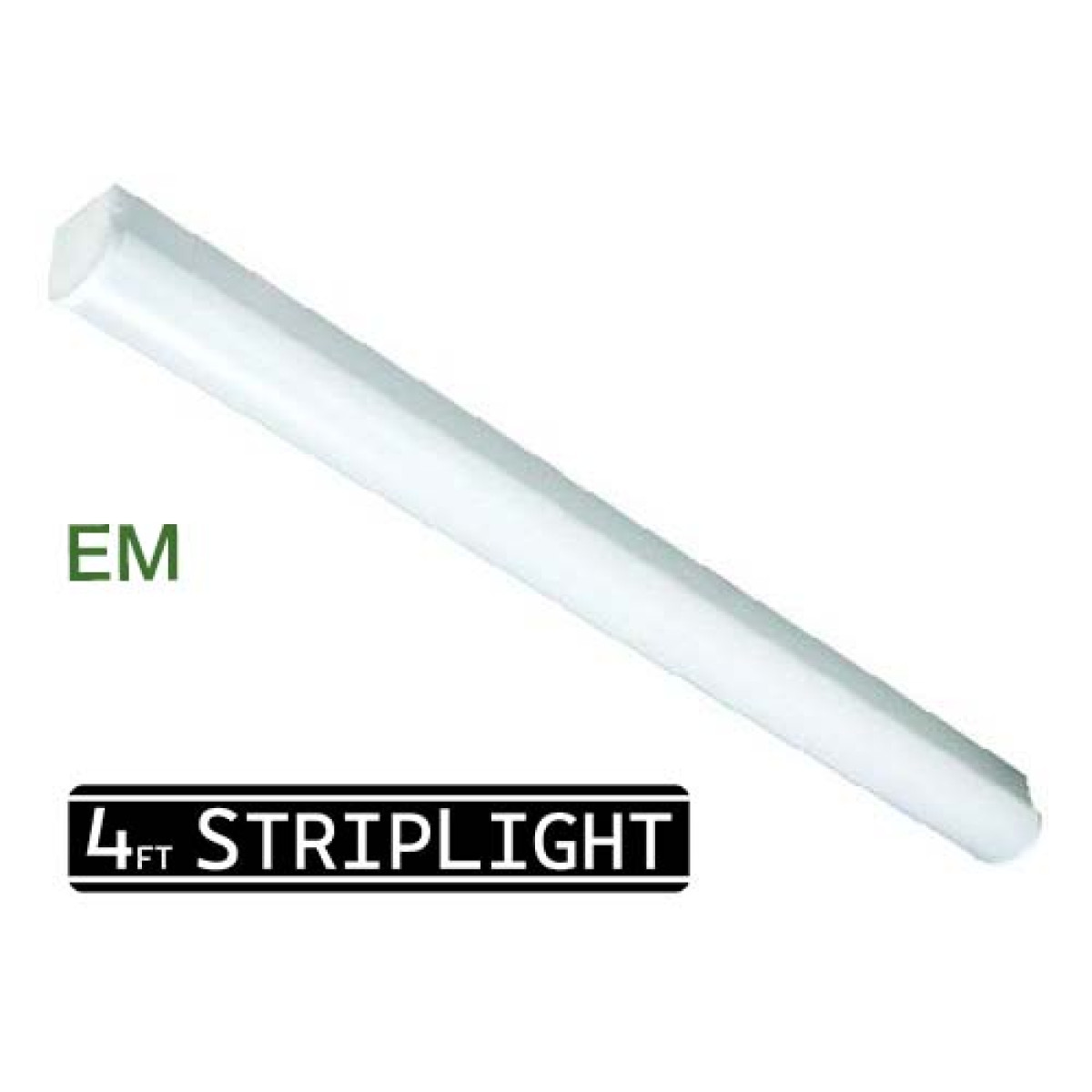

ALL LED A-LINE CCT & Power Selectable 4' Emergency LED Strip Light
The ALL-LED A-Line 4' Emergency LED Strip Light features high efficiency, quality and performance. These luminaires are designed to produce highly efficient lighting, which provides pleasant and uniform light distribution with no glare. The luminaires have a clean, modern look and are ideal for use in warehousing, manufacturing, conference centers, industrial and retail applications. The ALL-LED A-Line 4' LED Strip Light offers lower power consumption, longer life, dimming option and lower overall maintenance (no re-lamping required) than the standard fluorescent fixture and are therefore an excellent energy efficient replacement. Compatible with most 0-10V dimmers.
PRODUCT FEATURES
- Provides adequate backup lighting in the event of a power failure
- Factory installed 8W Emergency Battery Back Up
- 8W provides approximately 1040lm output in Emergency mode for approximately 90 Mins
- Wattage Selectable 30W, 40W or 50W
- CCT - Color Selectable 3500K, 4000K or 5000K
- Can be suspended if required - AL-SKIT (Order separately)
- Connection kit available for end to end connection - AL-EEKT (Order separately)
- Significant energy saving & maintenance free
- 120° beam angle
- CRI>80
- High power factor - 0.90
- Frosted Polycarbonate Diffuser
- Compatible with most 0-10V Dimmers
- Operating temperature -4°F to 122°F
- Suitable for damp locations
- Premium DLC (DesignLights Consortium®) certified
- (L70) at 50,000 hours lifetime
- 5 Year warranty
RANGE
- AL-ST4FT30/40/50 - 4' Standard (Click Here)
- AL-ST4FT30/40/50/MS - 4' Microwave (Click Here)
- AL-ST4FT30/40/50/EM - 4' Emergency (Click Here)
- AL-ST4FT30/40/50/MS - 4' Microwave & Emergency (Click Here)
ACCESSORIES
- AL-SKIT - Suspension Kit
- AL-EEKT - End to End Connection Kit
- AL-RCLH - Remote to Program/Commission Microwave Sensors from below with diffuser/cover on (instead of setting dip switches on fitting)
AL-ST4FT30/40/50EM - 30W 3900lm/ 40W 5000LM/ 50W 6500lm. In Emergency mode approximately 1040lm
- Model
- AL-ST4FT30/40/50/EM
- SKU
- AL-ST4FT30/40/50/EM
- Brand
- ALL LED
- Dimming
- 0-10v Dimmable (Compatible with most 1-10v Dimmers)
- Input Voltage
- 100 - 277Vac
- Power Factor
- 0.90
- Beam Angle
- 120°
- Lumen
- 30W 3900lm/ 40W 5000lm/ 50W 6500lm
- Lm/W (Efficiency / Efficacy)
- 130lm/w
- Watts
- Wattage Selectable 30W, 40W or 50W
- CCT (Color Temp.)
- Color Selectable 3500K, 4000K or 5000K
- CRI (Color Rendering Index)
- CRI 80+
- Location Information
- Damp Location Suitable
- Operating Temperature
- -4°F ~ 122°F
- Warranty
- 5 Year Warranty
- Lifetime (Hours)
- 50,000 Hours (L70)
- Applications
- Warehousing, Manufacturing, Conference Centers, Industrial and Retail Applications
- Dimensions
- 48" (L) x 3.35" (W) x 3.56" (H)
- DLC
- DLC Listed
- FCC
- FCC Compliant
- UL/cUL
- cUL Listed
- Emergency
- 8W Factory installed Emergency Battery
