The Alpha Range of fixed and adjustable Professional Lighting Fixtures is based on a flexible, modular design allowing for a wide range of product variations, suitable for a large number of lighting applications. Featuring High Power Engine technology, this family of light fixtures delivers high performance with phenomenal aesthetics.
Features

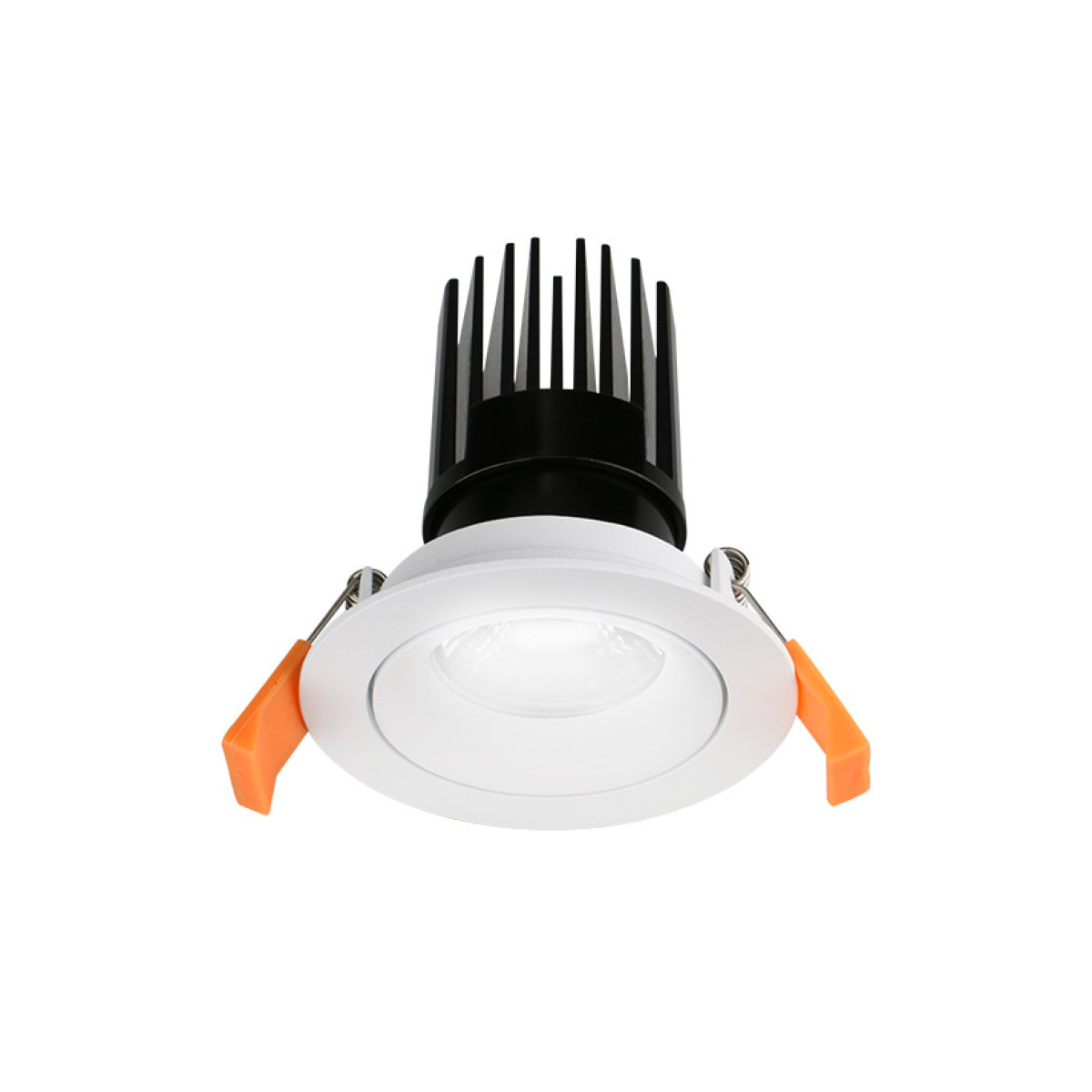

• High Lumen Output 3" Anti Glare LED Downlight
• High Performance LED Engines
10w Engine - 850lm - IC
18w Engine - 1620lm - Non-IC
• Input Voltage
10w Engine - Triac 120v or (0-10v 100 - 277V AC)
18w Engine - Triac 120v or (0-10v 100 - 277V AC)
• New Construction Housing Available
• Triac Dimmable as Standard (0-10V Dimming Available)
• CRI 90
• Available in 3000K
• Suitable for Damp Location
• (L70) at 50,000 Hours Lifetime
• 5 Year Warranty
- Model
- AL-DL3
- SKU
- AL-DL3
- Brand
- manufacturer
- Dimming
- Triac Dimmable (AL-DL3E**/30/**)/ 1-10v Dimmable (AL-DL3E**277/30/**)
- Input Voltage
- 120V AC (Triac Dimmable) / 100-277V AC (1-10v Dimming)
- Beam Angle
- 24° / 36° / 60° (Select Fixed Beam Angle when Ordering)
- Lumen
- <1620 LM (18W) / <850 LM (10W)
- Watts
- 18W / 10w
- CCT (Color Temp.)
- 3000K
- CRI (Color Rendering Index)
- CRI 90
- Location Information
- ☑ Damp Location
- Operating Temperature
- -4°F - 113°F
- Warranty
- 5 Year Warranty
- Lifetime (Hours)
- 50,000 Hours
- Finish
- TRIMS: AL/RTF* // AL/STF* // AL-RTAW // AL-STAW (* W - White Finish / B - Black Finish) NOTE: Black Finish Trims Special Order Only
- Construction
- Cast Aluminium Construction
- FCC
- ☑
- UL/cUL
- cULus Listed
