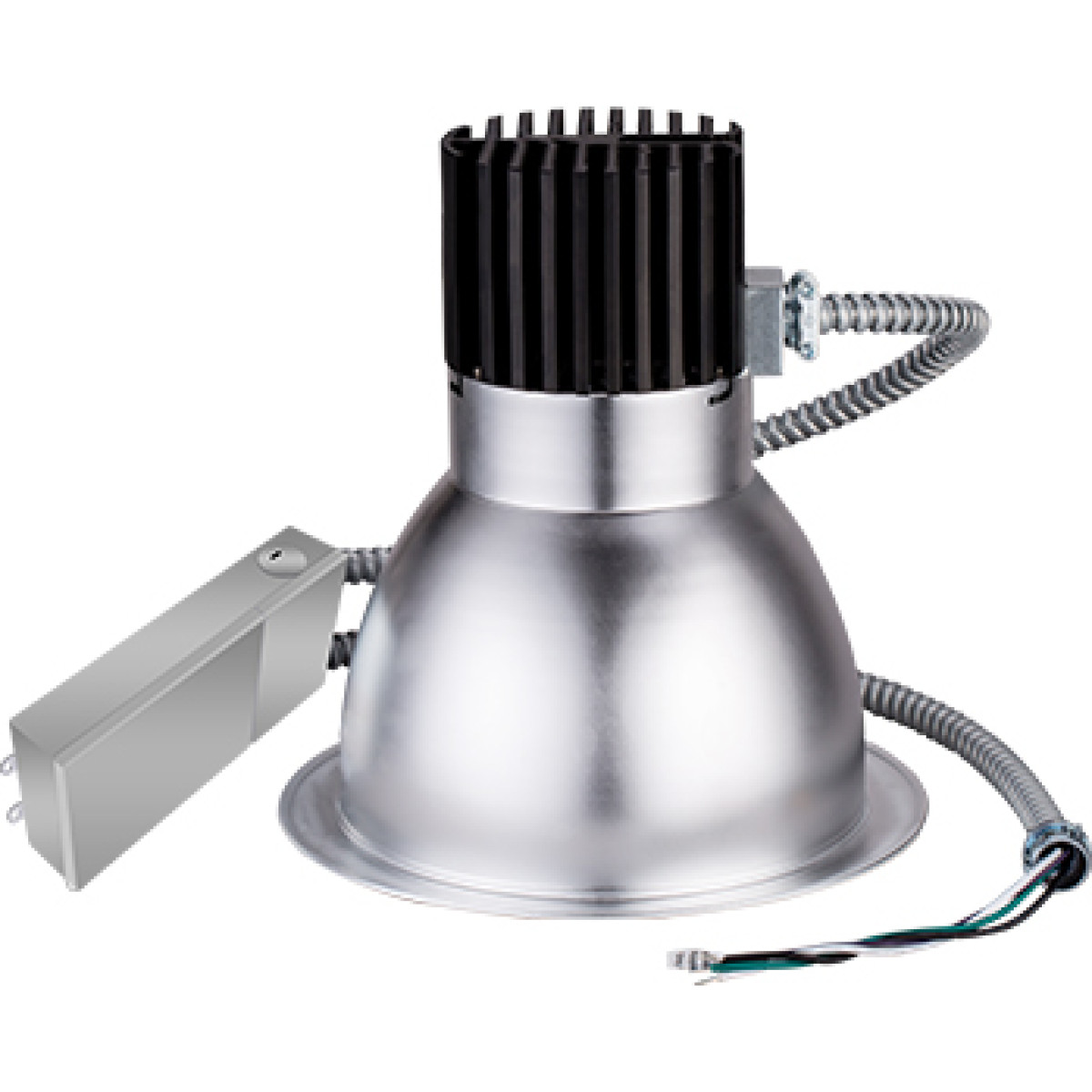

AL-CDS Range -BOSS RANGE Commercial Downlights - 4" / 6" / 8" / 10"
Model AL-CDS**/**

AL-CDS Range -BOSS RANGE Commercial Downlights - 4" / 6" / 8" / 10"

By ALL LED

The Boss range of Commercial LED lighting is ideal for retrofitting LED technology into existing outdated installations and can also be used in new construction. The deep baffle allows exceptional control of the light and reduces the glare rating significantly. This range delivers quality of light to a plethora of commercial spaces. Power Selectable Engines and in 4"/6" / 8" / 10".


Features

• Available in 4"/ 6" / 8" / 10"

• Power Selectable Engines

     40w Engine - 18w / 27w / 40w Selectable

     80w Engine - 50w / 65w / 80w Selectable

• Input Voltage

     40w Engine - 100V - 277V AC

     80w Engine - 110V - 347V AC

• Fits Existing Architectural and Commercial Frame

• 0-10V Dimming

• Comfortable Diffused Light.

• 40w Engine - Selectable CCT 3000K 3500K 4000K

• Suitable for Damp Location

• (L70) at 50,000 Hours Lifetime

• 5 Year Warranty


ALL LEDALLLEDUSAALL LED USAALL-LEDUSALED LightingCommercial LEDCommercial DownlightCommercial Lighting FixtureDimmableMulti WattPower SelectableCCT Selectable4"6"8"10"4in6in8in10in4 inch6inch8 inch10 inch0-10v Dimming1-10vDimmable

Model
AL-CDS**/**
SKU
AL-CDS**/**
Brand
ALL LED
Dimming
0-10v Dimmable
Input Voltage
100 - 277v AC (AL-CDS40/CCT) | 110-347V AC (AL-CDS80/**)
Beam Angle
50°
Lumen
80 lm/w
Watts
AL-CDS40/CCT (18w / 27w / 40w) | AL-CDS80/** (50w / 65w / 80w)
CCT (Color Temp.)
3000K / 3500K / 4000K (CCT Selectable) AL-CDS40/CCT | ALCDS80/** (Order in 3500K or 4000K)
CRI (Color Rendering Index)
CRI 80
Location Information
Damp Location Suitable
Warranty
5 Year Warranty
Lifetime (Hours)
50,000 Hours
Applications
A wide Range of Commercial Spaces
Finish
White
FCC
FCC Compliant
UL/cUL
cULus Listed
Quality
USA Quality Assurance
