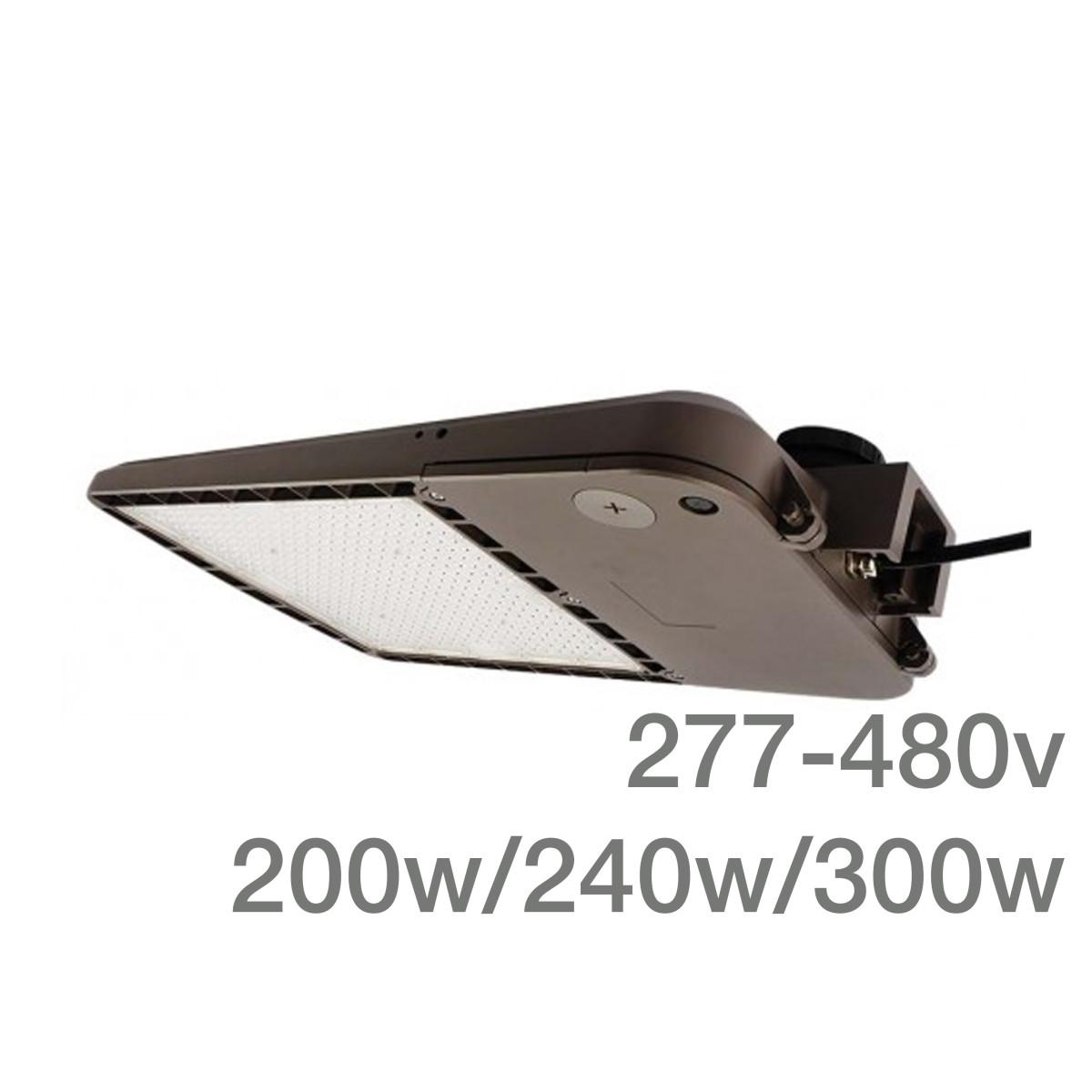

AL-480V2243CCT - 277-480v - 200W/ 240W/ 300w - AREA LIGHT WATTAGE AND CCT SELECTABLE
ALL LED Area Light Range | 277v-480v | CCT Selectable: 3000K/ 4000K/ 5000K | Watt Selectable: 200w/ 240w/ 300w
The ALL-LED Area Light range is a high quality range of performance light fixture designed and optimised for a wide range of exterior lighting environments with Horizontal or tilt mounting options including the popular Slip fitter Type A*, Pole Mount* (one bracket is compatible with both round and square pole types), and Trunion* for mounting to; pole, wall, and other vertical surfaces. The 100-277v fittings are designed to operate without the need for a shorting cap, and the 480v model is supplied with shorting cap and additional control options 0-10v, Easy-Fit Photocell*, or Screw-in Microwave Sensor* (operation ready MW sensor with factory defaults and programmable by remote control) for Prescence Detection.
PRODUCT FEATURES
• Excellent optical design type III / IV / V
• Significant energy savings and maintenance free
• Instant on/off, No re-strike delay
• 130lm/w up to 39,000LM
• 10KV surge protection
• EPA rating
• Suitable for wet locations
• Wattage selectable 200W/ 240W/ 300W
• Color selectable 3000K/ 4000K/ 5000K
• Operating temp -40℉ - 122℉
• 50,000 hour lifetime
• BUG (Back Light / Up Light / Glare): B3 U3 G3
• IK08
• 5 Year warranty
Area Light Accessories
Mounting
- AL-PMSR Square or Round pole mount
- AL-SFA Slip Flitter Type A
- AL-T Trunnion Mount
Controls
- AL-MRSE Microwave Sensor (Factory Default or Programmable with AL-MRSE)
- AL-RCRE Remote to Program Microwave Sensor (AL-MRSE)
|
* Item(s) sold separately |
|
Compliance & Approvals
- Model
- AL-480V2243CCT
- SKU
- AL-480V2243CCT
- Brand
- ALL LED
- Dimming
- 0-10V
- Input Voltage
- 100-277V AC
- Frequency
- 50/60Hz
- Surge
- 10KV
- Power Factor
- 0.90
- Beam Angle
- TYPE III / TYPE IV / TYPE V
- BUG (Backlight/Uplight/Glare)
- B3 / U3 / G3
- Lumen
- 26,000lm/ 31,200lm/ 39,000lm
- Lm/W (Efficiency / Efficacy)
- 130lm/w
- Watts
- Wattage selectable: 200w/ 240w/ 300w
- CCT (Color Temp.)
- CCT selectable: 3000K/ 4000K/ 5000K
- CRI (Color Rendering Index)
- >80
- Location Information
- Wet Location
- IK Rating
- IK08
- Ingress Protection (IP Rating)
- IP65
- Operating Temperature
- -40℉- 122℉
- Warranty
- 5 Years
- Lifetime (Hours)
- 50,000 (L70)
- Weight
- 10.75 Ibs
- Construction
- Die-Cast Body, Polycarbonate Lens
- Dimensions
- 22.7″ (Overall L) / 21.0″ (Head L) x 13.0″ (W) x 2.6″ (H)
- LED Type
- SMD
- DLC
- DLC Premium
- FCC
- FCC
- UL/cUL
- cUL
