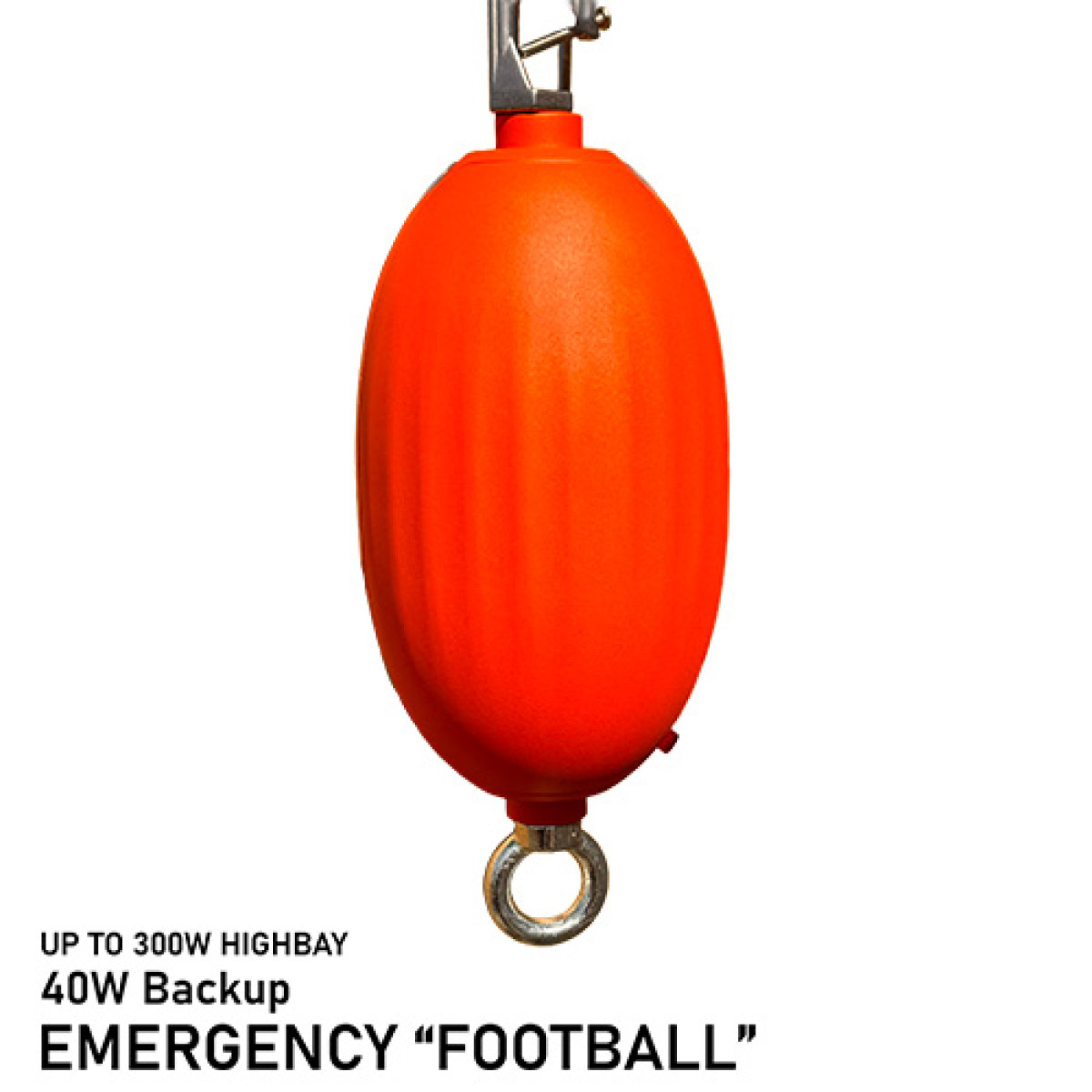

ALL LED AL-HB/EM 40w Emergency Output Highbay "Football" Emergency Pack
This Emergency Football offers a high quality, high watt, high ambient temperature solution to field install to highbay fittings up to 300w.
This innovative solution is easy to identify from a distance when installed with its powder-coat Orange finish and the bright red indicator diode.
Discharge and testing is convenient with the remote easy to use remote (included), simply press the button to initiate testing and to finish testing.
Compatibility
• AL-HB102550/CCT (100/125/150W) Round UFO Highbay
• AL-HB1524/CCT (150/200/240w) Round UFO Highbay
PRODUCT FEATURES
• 40w Emergency Power Output (operating in Emergency Battery Backup)
• 90 mins
• Charging Time: >24hours (minimum of 1hour charge time before installation circuit test)
• Input Voltage :100-277V AC (50/60 HZ) or 100-347V AC (50/60 HZ)
• Suitable for use in Dry, Damp or Wet Locations
• IP65
• Do not use the UFO Highbay fixtures in corrosive environments
• Emergency driver apply to UFO Highbay fixtures under 300W
• Operating Temperature: -40°F~131°F (5°C~55°C)
• Compatible Wiring Options: Wall Switch / 0-10v Dimmable / Plug&Play Sensors (see sensors) / most leading External Sensors
• Compatible with most leading 0-10v dimmers
• High Ouput Voltage: 170V DC
• Built-In JB (Junction Box)
• Integrated Protections:
• Over-Voltage
• Short-Circuit
• Overload
• Open-Circuit
• Wireless Test Remote Included
• Wireless (remote) or wired Emergency Test options
• Indoor use only
• Max Mounting Height: 48.65ft
• Complies to UL924 and csa 22.2, No. 141 for USA & Canada
• California Energy Commission (CEC) Title 20 with BC compliant
• Finish: Orange Powder-Coat
• Constructed from Die-Cast aluminum casing & Polymer indicator
• 5 Year Warranty
Compliance & Approvals
- Model
- AL-HB/EM
- SKU
- AL-HB/EM
- Brand
- manufacturer
- Watts
- 40W (UP TO 300W)
- Location Information
- wet location
- Operating Temperature
- -40°F~131°F (5°C~55°C)
- Warranty
- 3 Years
- Dimensions
- 10.76 in x 5.6 in
- Emergency
- EM TIME 90 MINS
