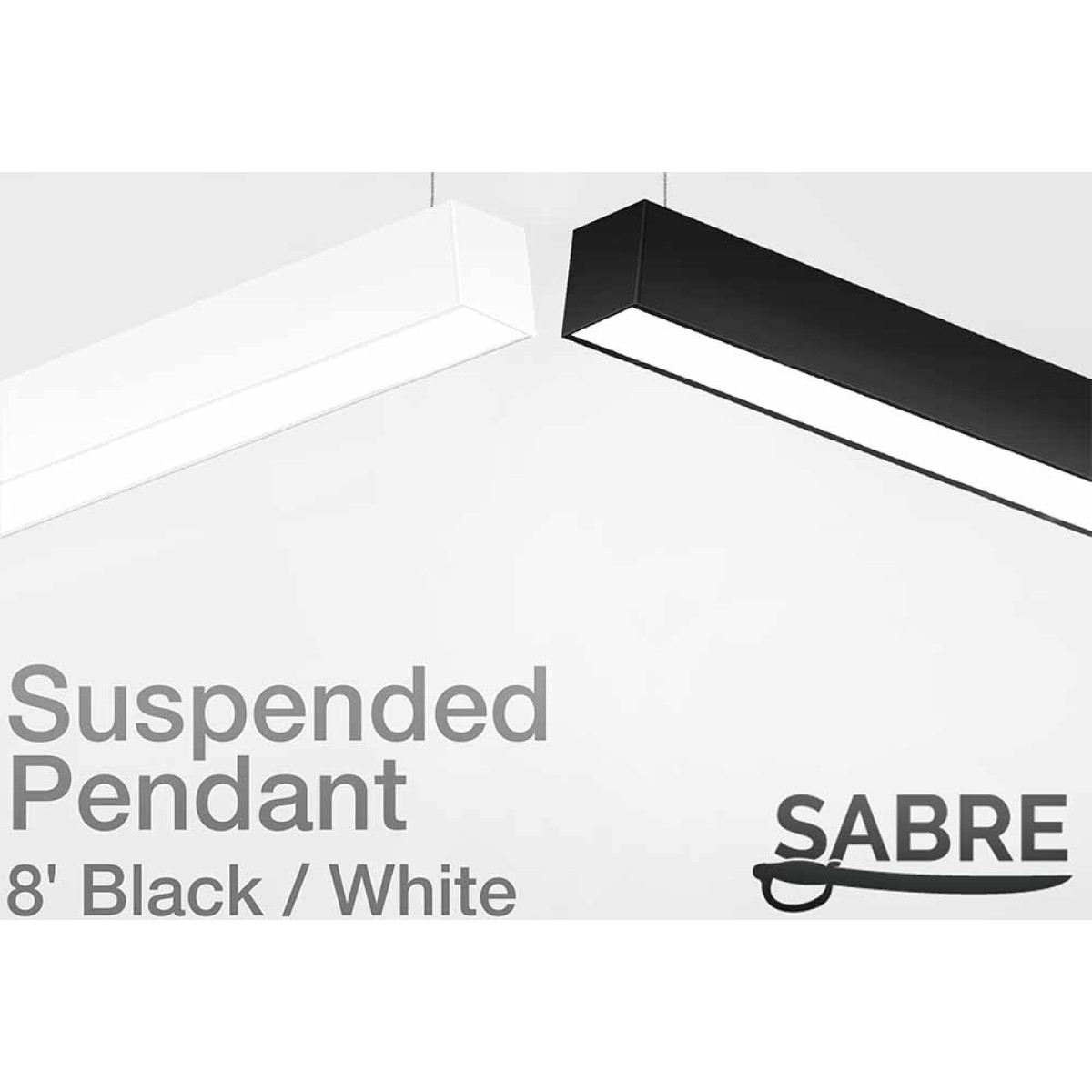

AL-L2380D/CCT - Sabre 8' x 2″ SUSPENDED PENDANT / SURFACE Linear Light Engine

ALL LED Sabre 8'x2″ Linear Suspended Pendant/Surface Mount UP/Down Light Engine (Black/White)

The New ALL LED SABRE Architectural Light Engine Range available in 2/3/4/8ft leads the market in form and function. Sabre is a high quality luminaire which is available in matching formats for recessed, Grid Ceiling compatible and fully recessed 'trimless', suspended up/down and wall. This LED Light engine fixture is designed for Suspended up/down light and features CCT Selectable, watt selectable & Suspended Direct-Indirect Light distribution selection to cover a wide range of project applications.

PRODUCT FEATURES
• 2'/ 3'/ 4'/ 8' Linear Light Engine – Up/Down
• 7 Up/Down light distribution Selection options
     100:0/ 90:10/ 70:30/ 50:50/ 30:70/ 10:90/ 0:100
• Watt & CCT Selectable (3000K / 3500K / 4000K)
• Watt Selectable LED Driver
• Designed for suspended pendant or surface mounting to drywall, concrete and other hard surfaces
• 0-10V Dimmable
• Input Voltage 100-277V AC
• Power:
     One 120v Power Point for a 40ft Continuous Run
     One 277v Power Point for a 100ft Continuous Run
• Straight joiner & Light up 90° "L" corner joiner module available
• Designed for easy maintenance access from below
• Suitable for Damp Location
• Add suffix; /BK for Black finish or /W for White finish
• Add suffix; /EM for Emergency, /MS for Sensor
• Integrated Emergency Option (Remote Emergency Option available)
• (L70) at 50,000 Hours Lifetime
• 5 Year Warranty
• Sabre mounting fixing options; Recess Flange, French Key Trimless, T-Grid Fixing or Custom Installation Fixing to suit ceiling type must be confirmed when ordering.
• Sabre is a range of complimentary light engines available in; 2'/ 3'/ 4'/ 8' lengths and fully recessed (trimless), recessed, surface, suspended up/down, and wall fixture (sold separately) with Emergency and Sensor options.
MATCHING; FULLY RECESSED, RECESSED, SURFACE MOUNT/PENDANT FIXTURE OR WALL FIXTURE ALSO AVAILABLE (SOLD SEPARATELY)
