Model AL-WDL495CCT/WH/EM

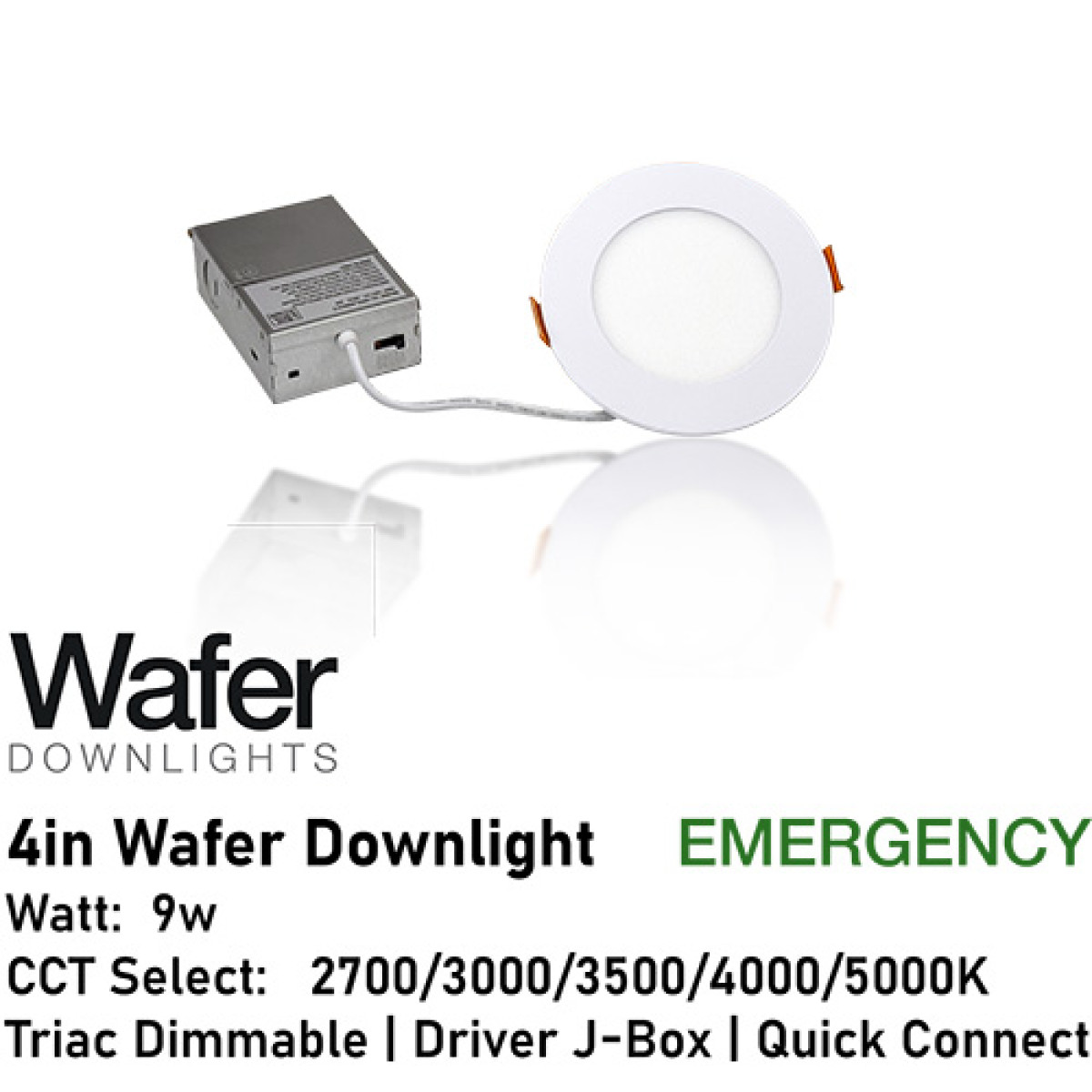

AL-WDL495CCT/WH/EM - 4" 9w Emergency Wafer Downlight - 5-CCT Select Flicker Free 120v AC Triac Dimmable White Finish

WAFER DOWNLIGHT | 4" Emergency 9-Watt & 5-CCT Select Slimline Design 120v AC J-Box Driver White Finish

The Wafer range combines a modern, ultra-low-profile design is ideal for shallow ceiling spaces with versatile features for a wide range of applications. Each fixture features a high-quality 120V driver with smooth TRIAC dimming, 5-CCT Select (2700/3000/3500/4000/5000K), the wide-beam provides even illumination a plug-&-play driver connection and integrated junction box for easy installation. Available in 4-inch and 6-inch sizes, white or black finishes, round and square designs, and emergency configurations.

PRODUCT FEATURES
• Watt: 9w (Triac Dimmable)
• 5-CCT Select: 2700K / 3000K / 3500K / 4000K / 5000K
• CRI 90
• Wet Location Suitable
• Triac Dimmable
• Compatible with a Wide Range of Dimmers
• Low Profile, Fixture < 1.00” and Driver <1.40”
• Driver with Hinged J-Box & Quick-Connector
• Plug-&-Play Driver-to-Fitting Quick Connector
• Wide Beam Angle 120°
• High-Transmission Optics >90% efficiency
• Flicker Free
• High Power Factor - 0.90
• 120v
• Operating Temperature -4°F to 113°F (Emergency: 32°F - 113°F)
• Polycarbonate Lens & Die-cast ADC12 Aluminium Body & Steel Driver Casing
• Powder-Coat White Finish or Black Finish
• (L70) at 50,000 hours lifetime, 5 year warranty
• Range Includes 4in & 6in Models in Round & Square (Round Ceiling Cut-Out)
• Emergency Model

APPLICATIONS
Suitable for a wide range of indoor lighting applications including; Commercial, Education, Municipal, Retail, Leisure, Hospitality, Conference Centers, Residential and other indoor lighting applications.

DIMMING COMPATIBILITY
• LUTRON ®  TG600PR-WH
• LUTRON ®  S600PR-WH
• LUTRON ®  CTCL-153PDH-WH
• LUTRON ®  TGCL-153PH-LA
• LUTRON ®  SLV-600P
• LUTRON ®  DV-600PR-WH
• LUTRON ®  SCL-153PH-WH
• LUTRON ®  DVCL-153P
• LUTRON ®  MSCL-OP153M
• LUTRON ®  PD-6WCL
• LUTRON ®  MACL-153M//MA-R
• LEVITON ®  6672
• LEVITON ®  RNL06
• LEVITON ®  IPL06
• LEVITON ®  DSL06
• LEVITON ®  6674
• Please contact sales for other controls options.
RANGE
PRODUCT CODE
TYPE
AL-WDL495CCT/WH White Standard
AL-WDL495CCT/BK Black Standard
AL-WDL495CCT/WH/EM White Emergency
AL-WDL495CCT/BK/EM Black Emergency

EMERGENCY
PRODUCT CODE TYPE EMERGENCY TEMP NOTE
AL-WDL495CCT/WH/EM
White Finish
Built-In Emergency
with External Indicator
90min 41°F - 122°F Contact sales for more information
AL-WDL495CCT/BK/EM
Black Finish
Built-In Emergency
with External Indicator
90min 41°F - 122°F Contact sales for more information

<

Model
AL-WDL495CCT/WH/EM
SKU
AL-WDL495CCT/WH/EM
Brand
ALL LED
Dimming
Triac Dimmable
Dimming Range
10-100%
Input Voltage
120V AC 60Hz (Triac Dimmable)
Frequency
60Hz
Power Factor
0.90
Beam Angle
120°
Lumen
720lm (Emergency: 560lm)
Lm/W (Efficiency / Efficacy)
80lm/w
CCT (Color Temp.)
2700K / 3000K / 3500K / 4000K / 5000K
CRI (Color Rendering Index)
CRI 90
Location Information
Wet Location Suitable
Wet Location Suitable
Wet Location
Fitting Type
Wafer Downlight
Operating Temperature
32°F - 113°F
Warranty
5 Year
Lifetime (Hours)
50,000 Hours
Weight
2.00lbs
Product Range
Wafer Downlight
Applications
Suitable for a wide range of indoor lighting applications including; Commercial, Education, Municipal, Retail, Leisure, Hospitality, Conference Centers, Residential and other indoor lighting applications.
Finish
Powder-coat White
Construction
Die-Cast ADC12 Aluminium Fixture Body & Polycarbonate Lens
Dimensions
(ØxHxHd) 4.70" x 0.96" x 1.38"
Cut-Out (Dimensions)
4.20"
FCC
FCC
ETL/cETL
ETL
Quality
USA Quality Assured
Emergency
7w 90min 560lm
